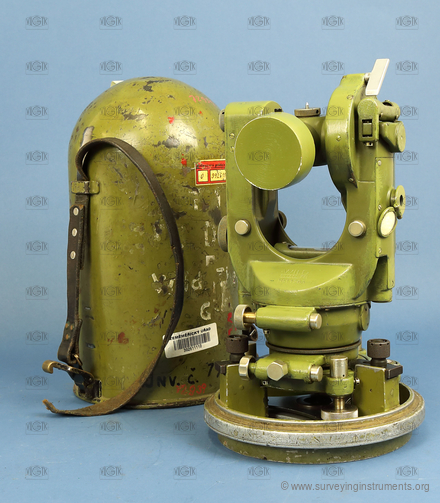

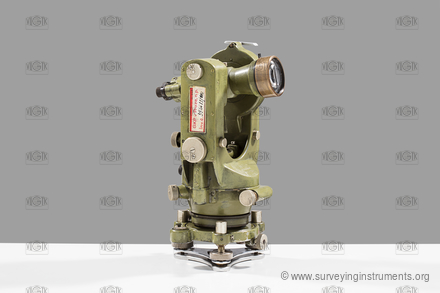

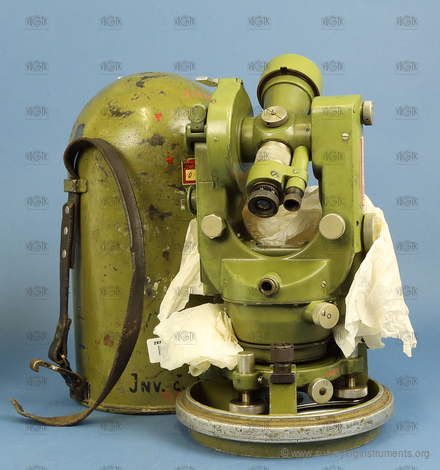

T2
The manufacturer's name on the device
- WILD HEERBRUGG
- VÚGTK: S0109
- Owner: Národní technické muzeum
- Manufacturer: Wild Heerburgg
- Made: 01.01.1950
- Length: 145 mm
- Width: 144 mm
- Height: 253 mm
- Weight: 4560 g
- S/N: 11283
- cross hairs:
-
- telescope type: revolved
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: gon
- the possibility of determining the elevation: yes
- distance meter type: optical
- construction of the distance meter: integrated
- view in the telescope: inverted
- variable telescope length: no
- telescope length with retracted eyepiece: 145 mm
- telescope diameter: 38 mm
- minimum telescope focusing distance: 1500 mm
- telescope magnification: 25
- type of optical plummet: in the body of device
- compass: none
- horizontal circle diameter: 95 mm
- main reading scale of the horizontal circle: micrometer scale
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: repeating
- vertical circle: yes
- segment of the vertical circle: no
- vertical circle diameter: 75 mm
- main reading scale of the vertical circle: micrometer scale
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: yes
- length of the cross level/level perpendicular with line of collimation: 55 mm
- bubble length of the cross level/level perpendicular with line of collimation: 22 mm
- leveling vial: no
- striding level: no
- altitude buble: yes
- lenght of the altitude level: 60 mm
- bubble length of the altitude level: 20 mm
- sensitivity of the alidade level: 30 "
