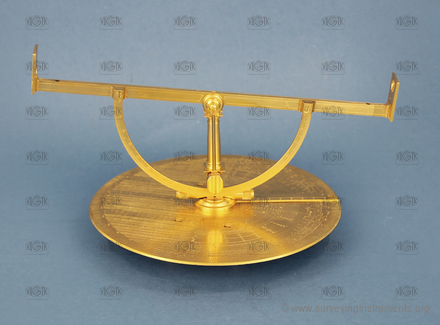

theodolite – Stolle
Description
The manufacturer's name on the device
Heinr. Stolle Vhmr.prag fec. et Inuet
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0168
Owner:
Národní technické muzeum
Manufacturer:
Stolle
Made:
01.01.1610
Length:
242
mm
Width:
175
mm
Height:
126
mm
Weight:
750
g
S/N:
Technical parameters
tripod connection:
special
type of clamp:
endless
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
variable telescope length:
no
telescope length with retracted eyepiece:
240
mm
type of optical plummet:
none
compass:
none

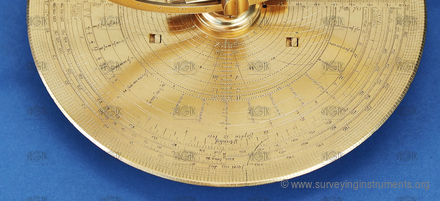

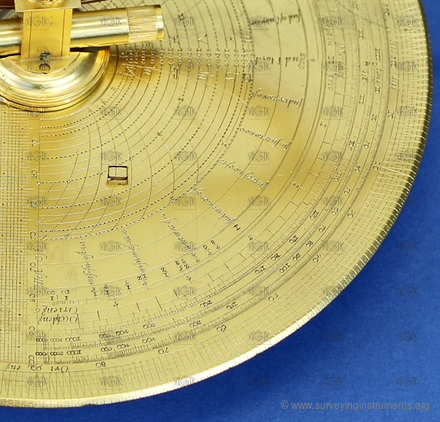

horizontal circle diameter:
175
mm
main reading scale of the horizontal circle:
index
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
5´
setting the horizontal circle to zero:
none
vertical circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
180
vertical circle diameter:
132
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
30´
cross level:
no
leveling vial:
no
striding level:
no
altitude buble:
no
designed for work:
special work
