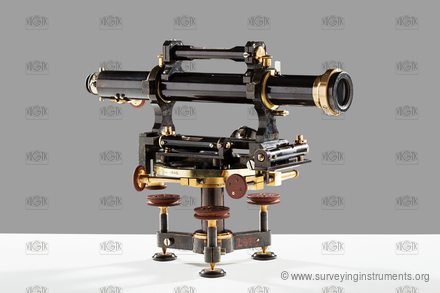

levelling instrument – J. & J. Frič

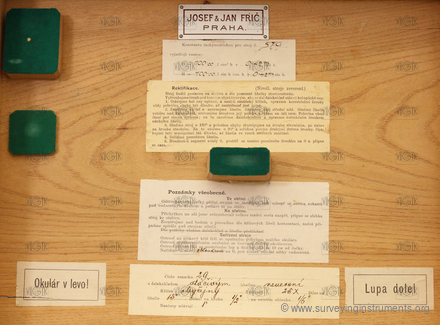

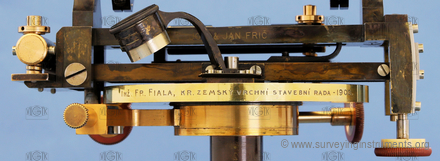

The manufacturer's name on the device
- Josef & Jan Frič
- VÚGTK: S0019
- Owner: Národní technické muzeum
- Manufacturer: J. & J. Frič
- Made: 01.01.1910
- Length: 130 mm
- Width: 170 mm
- Height: 218 mm
- Weight: g

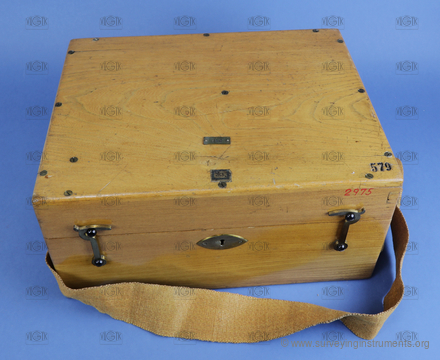

- S/N: 579
- cross hairs:
-
- telescope type: rotated
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- elevation screw: no
- distance meter type: optical
- construction of the distance meter: integrated
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 297 mm
- telescope length with extended eyepiece: 340 mm
- telescope diameter: 38 mm
- minimum telescope focusing distance: 2720 mm
- telescope magnification: 33

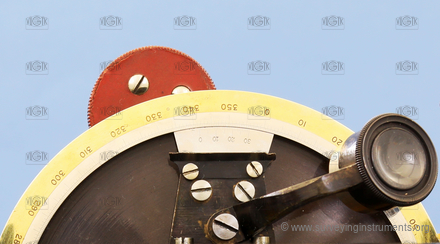

- horizontal circle: yes
- horizontal circle diameter: 112 mm
- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- segment of the vertical circle: no
- cross level: no
- leveling vial: yes
- length of leveling vial: 117 mm
- bubble length of the leveling vial: 28 mm
- striding level: no
- sensitivity of the striding level or leveling vial: 20 "
- designed for work: basic work
