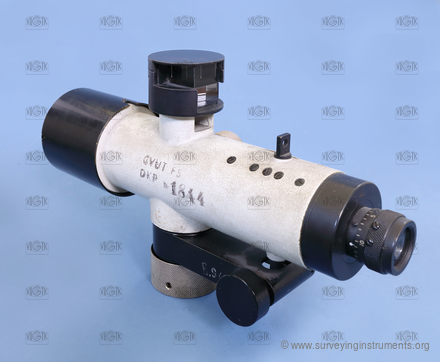

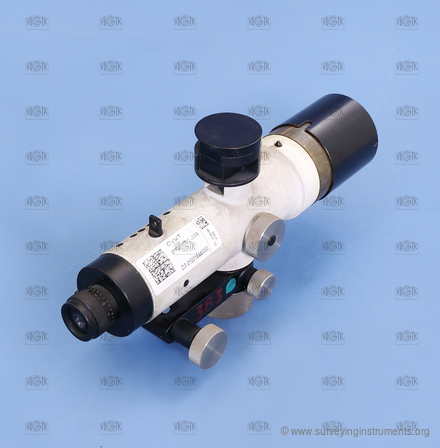

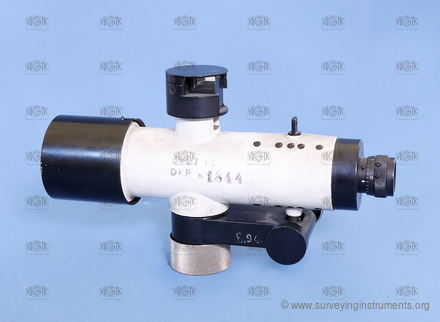

LODIS
Description
The manufacturer's name on the device
Carl Zeiss Jena
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0241
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1930
Length:
200
mm
Width:
67
mm
Height:
114
mm
Weight:
1150
g
S/N:
33488
Technical parameters
telescope type:
non-removable
tripod connection:
pin
type of clamp:
clamp on the axis
compensator:
no
striding level:
no
the possibility of determining the elevation:
no
distance meter type:
optical
construction of the distance meter:
integrated
altitude buble:
no
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
200
mm
telescope diameter:
32
mm
minimum telescope focusing distance:
1450
mm
telescope magnification:
16.7
type of optical plummet:
none
horizontal circle:
no
vertical circle:
no
segment of the vertical circle:
no
cross level:
no
