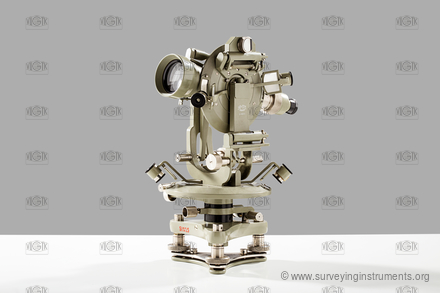

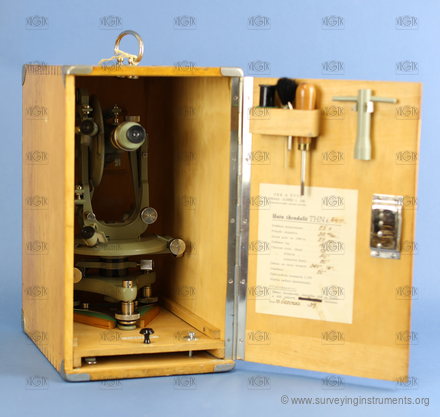

THN
Description
The manufacturer's name on the device
Srb a Štys
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0045
Owner:
Národní technické muzeum
Manufacturer:
Srb a Štys
Made:
13.06.1939
Length:
230
mm
Width:
165
mm
Height:
290
mm
Weight:
4740
g
S/N:
4911
Technical parameters
cross hairs:
telescope type:
flip over
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
225
mm
telescope diameter:
54
mm
minimum telescope focusing distance:
3000
mm
telescope magnification:
25
type of optical plummet:
none
compass:
none
horizontal circle diameter:
134
mm

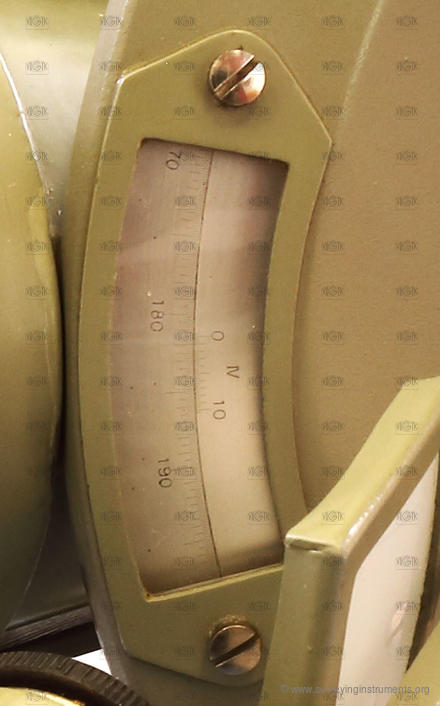

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
20"
setting the horizontal circle to zero:
repeating
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
112
mm

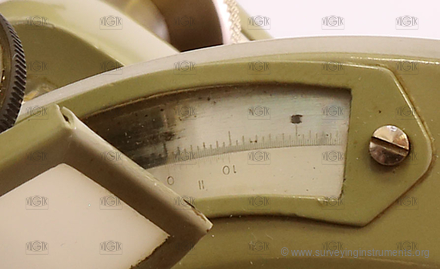

main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
2
the smallest segment of the vertical circle:
20"
cross level:
yes
length of the cross level/level parallel with line of collimation:
50
mm
bubble length of the cross level/level parallel with line of collimation:
20
mm
length of the cross level/level perpendicular with line of collimation:
50
mm
bubble length of the cross level/level perpendicular with line of collimation:
20
mm
leveling vial:
yes
length of leveling vial:
75
mm
bubble length of the leveling vial:
25
mm
striding level:
no
altitude buble:
yes
sensitivity of the striding level or leveling vial:
20
"
sensitivity of the alidade level:
40
"
sensitivity of the altitude level:
20
"
designed for work:
basic work
