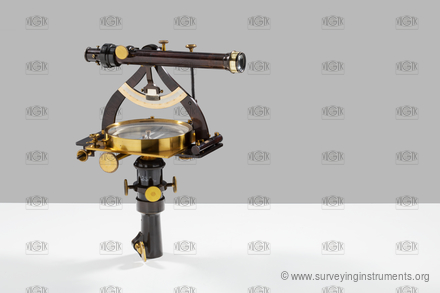

theodolite – Spitra
Description
The manufacturer's name on the device
O. Spitra Prague
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0050
Owner:
Národní technické muzeum
Manufacturer:
Spitra
Made:
01.01.1880
Length:
250
mm
Width:
160
mm
Height:
314
mm
Weight:
3200
g
S/N:
Technical parameters
telescope type:
rotated
tripod connection:
special
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
erected
variable telescope length:
yes
telescope length with retracted eyepiece:
243
mm
telescope length with extended eyepiece:
255
mm
telescope diameter:
28
mm
minimum telescope focusing distance:
2900
mm
telescope magnification:
17
type of optical plummet:
none
compass:
attachable
compass design:
circle
smallest division of the compass scale:
1˚
setting the horizontal circle to zero:
none
vertical circle:
yes

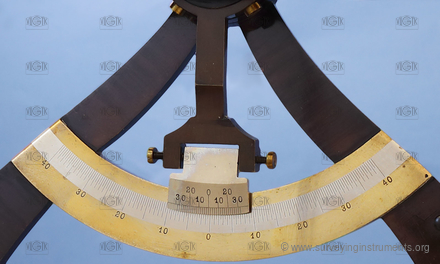

segment of the vertical circle:
yes
segment's range of vertical circle:
-40° - +40°
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
2'
cross level:
yes
length of the cross level/level parallel with line of collimation:
75
mm
bubble length of the cross level/level parallel with line of collimation:
12
mm
length of the cross level/level perpendicular with line of collimation:
75
mm
bubble length of the cross level/level perpendicular with line of collimation:
12
mm
leveling vial:
no
striding level:
no
altitude buble:
no
sensitivity of the alidade level:
70
"
designed for work:
basic work
