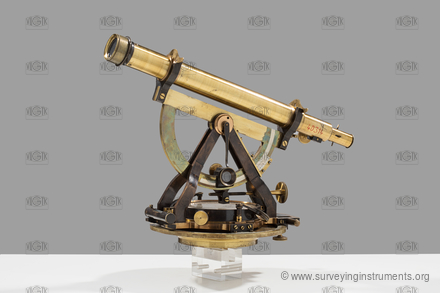

buzolní teodolit
The manufacturer's name on the device
- R. M. Brandeis
- VÚGTK: S0059
- Owner: Národní technické muzeum
- Manufacturer: Brandeis
- Made: 01.01.1860
- Length: 377 mm
- Width: 178 mm
- Height: 243 mm
- Weight: 5480 g
- S/N:
- telescope type: reversible
- tripod connection: special
- type of clamp: peripheral clamp
- compensator: no
- unite: ° ' "
- view in the telescope: erected
- variable telescope length: yes
- telescope length with retracted eyepiece: 375 mm
- telescope length with extended eyepiece: 402 mm
- telescope diameter: 35 mm
- minimum telescope focusing distance: 3600 mm
- telescope magnification: 20
- type of optical plummet: none
- compass: integrated
- compass design: circle
- compass diameter: 110 mm
- smallest division of the compass scale: 30'

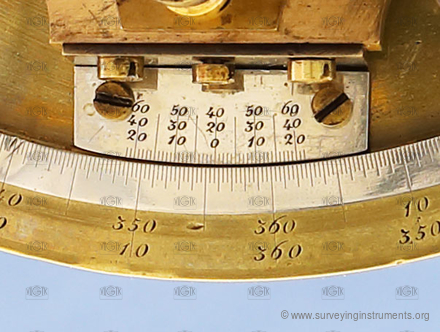

- horizontal circle diameter: 178 mm
- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 2
- the smallest segment of the horizontal circle: 2'
- setting the horizontal circle to zero: none

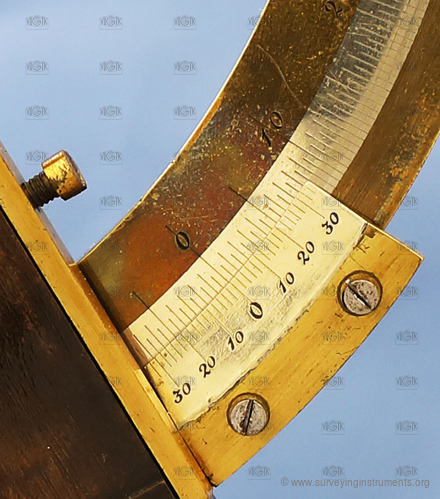

- vertical circle: yes
- segment of the vertical circle: yes
- segment's range of vertical circle: -50° - +50°
- vertical circle diameter: 80 mm
- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 1
- cross level: no
- length of the cross level/level perpendicular with line of collimation: 68 mm
- bubble length of the cross level/level perpendicular with line of collimation: 15 mm
- altitude buble: no
