other devices for measuring angle – Steiur

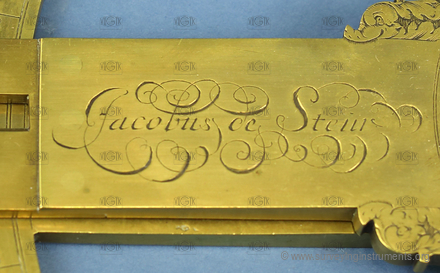

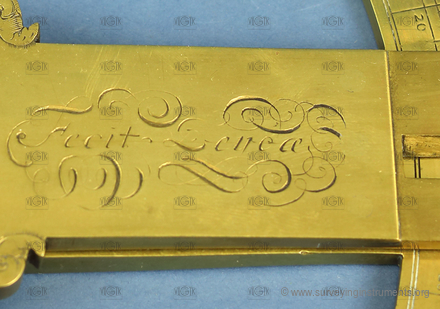

The manufacturer's name on the device
  • Jacobus de Steiur fecit Leyda

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0159
  • Owner: Národní technické muzeum
  • Manufacturer: Steiur
  • Made: 01.01.1690
  • Length: 378 mm
  • Width: 278 mm
  • Height: 75 mm
  • Weight: 1840 g
  • S/N:

  • telescope type: N/A
  • tripod connection: special
  • type of clamp: none
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: no
  • construction of the distance meter: N/A
  • altitude buble: no
  • type of optical plummet: none

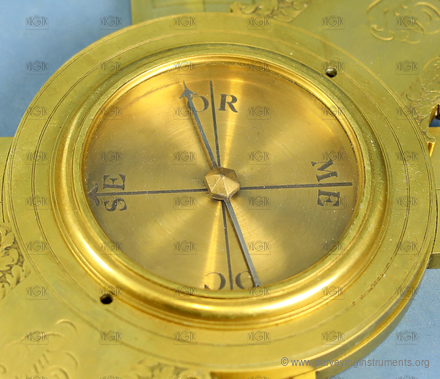

  • compass: integrated
  • compass design: circle
  • compass diameter: 55 mm
  • smallest division of the compass scale: N/A

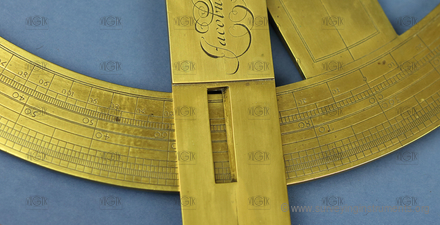

  • horizontal circle: yes
  • horizontal circle diameter: 278 mm
  • main reading scale of the horizontal circle: index
  • the smallest segment of the horizontal circle: 20´
  • number of reading scales of the horizontal circle: 2
  • setting the horizontal circle to zero: none
  • vertical circle: no
  • segment of the vertical circle: no
  • cross level: no
  • striding level: no
