other devices for measuring angle – Stolle
Description
The manufacturer's name on the device

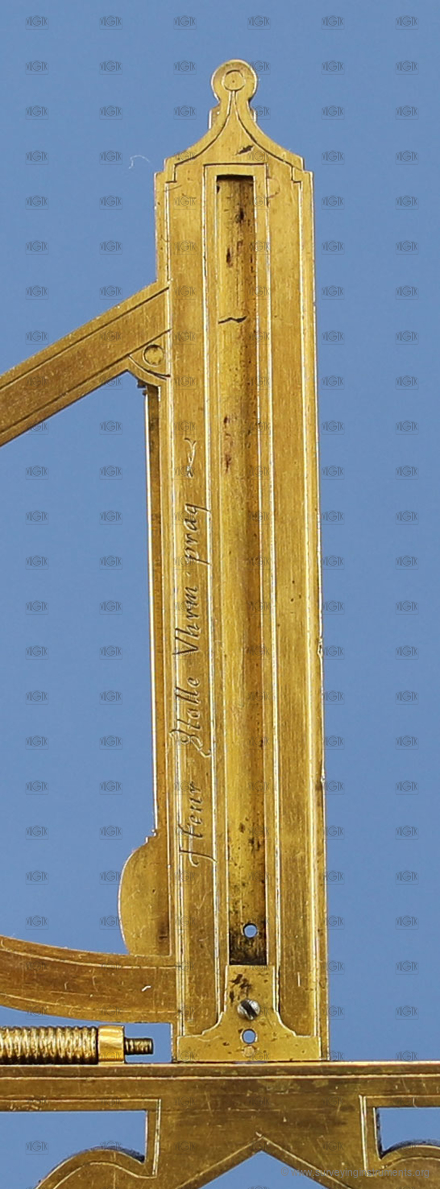

Henr Stolle Vhrm.prag
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0169
Owner:
Národní technické muzeum
Manufacturer:
Stolle
Made:
01.01.1590
Length:
105
mm
Width:
20
mm
Height:
131
mm
Weight:
210
g
S/N:
Technical parameters
telescope type:
N/A
tripod connection:
special
type of clamp:
none
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
type of optical plummet:
none
compass:
none
horizontal circle:
no
setting the horizontal circle to zero:
none
vertical circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
60°
vertical circle diameter:
132
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1°
cross level:
no
striding level:
no
