Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

other instruments – --undefined--

The manufacturer's name on the device
  • not specified

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0193
  • Owner: Národní technické muzeum
  • Manufacturer: --undefined--
  • Made: 01.01.1890
  • Length: 205 mm
  • Width: 50 mm
  • Height: 90 mm
  • Weight: 600 g
  • S/N:

  • cross hairs:
  • NK_001
  • telescope type: non-removable
  • tripod connection: special
  • type of clamp: none
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: yes
  • elevation screw: yes
  • construction of the distance meter: N/A
  • autoreduction of the length: no
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with retracted eyepiece: 206 mm
  • telescope diameter: 22 mm
  • type of optical plummet: none
  • compass: none
  • horizontal circle: no
  • setting the horizontal circle to zero: none
  • vertical circle: no

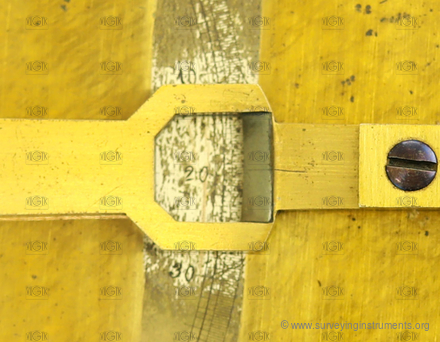

  • segment of the vertical circle: yes
  • segment's range of vertical circle: 40°
  • vertical circle diameter: 126 mm
  • main reading scale of the vertical circle: index
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 15´
  • cross level: no
  • length of the cross level/level parallel with line of collimation: 36 mm
  • bubble length of the cross level/level parallel with line of collimation: 11 mm
  • striding level: no
  • altitude buble: no
  • designed for work: special work
