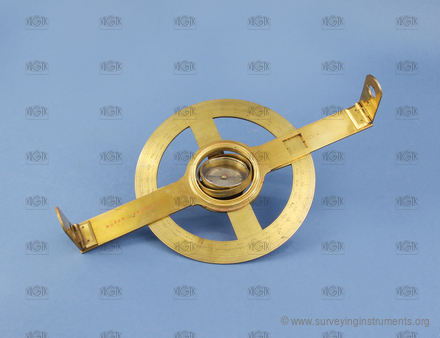

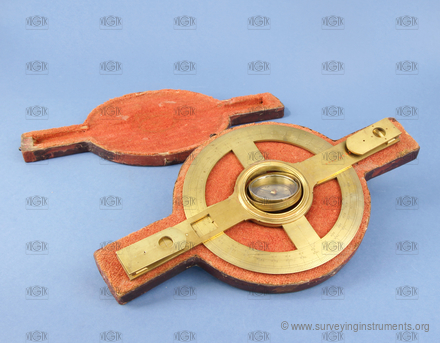

other devices for measuring angle – Moser

The manufacturer's name on the device
  • MOSER PRAG 1790

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0192
  • Owner: Národní technické muzeum
  • Manufacturer: Moser
  • Made: 01.01.1790
  • Length: 281 mm
  • Width: 157 mm
  • Height: 105 mm
  • Weight: 605 g
  • S/N:

  • telescope type: N/A
  • tripod connection: pin
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: no
  • construction of the distance meter: N/A
  • altitude buble: no
  • variable telescope length: no
  • type of optical plummet: none
  • compass: integrated
  • compass design: circle
  • compass diameter: 40 mm
  • smallest division of the compass scale: 90°
  • horizontal circle: yes
  • horizontal circle diameter: 159 mm

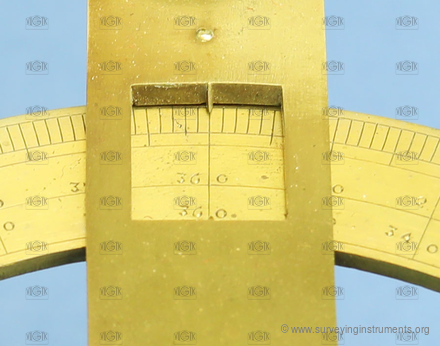

  • main reading scale of the horizontal circle: index
  • the smallest segment of the horizontal circle: 1°
  • number of reading scales of the horizontal circle: 1
  • setting the horizontal circle to zero: none
  • vertical circle: no
  • segment of the vertical circle: no
  • cross level: no
  • striding level: no
  • designed for work: low precise work
