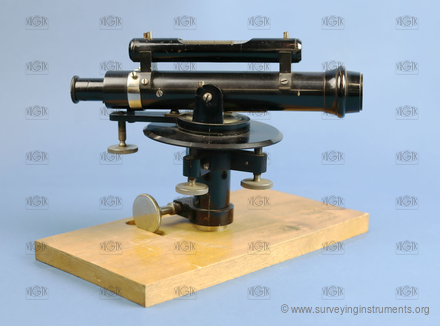

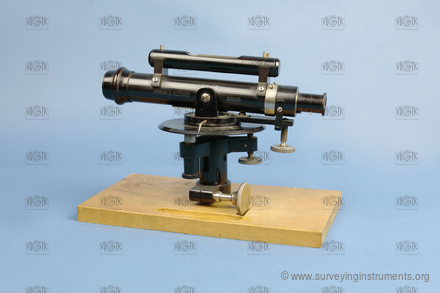

levelling instrument – Arnold Klíčník
Description

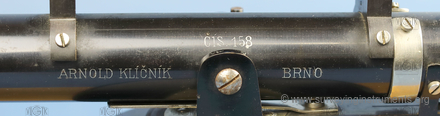

The manufacturer's name on the device
ARNOLD KLÍČNÍK BRNO
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0226
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
Arnold Klíčník
Made:
01.01.1910
Length:
181
mm
Width:
84
mm
Height:
125
mm
Weight:
790
g
S/N:
158
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
special
type of clamp:
endless
compensator:
no
unite:
° ' "
elevation screw:
yes
construction of the distance meter:
N/A
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
181
mm
telescope length with extended eyepiece:
207
mm
telescope diameter:
20
mm
minimum telescope focusing distance:
4600
mm
telescope magnification:
10.8
horizontal circle:
yes
horizontal circle diameter:
87
mm
main reading scale of the horizontal circle:
index
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
45°
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
104
mm
bubble length of the leveling vial:
22
mm
striding level:
no
sensitivity of the striding level or leveling vial:
10
"
designed for work:
basic work
