Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

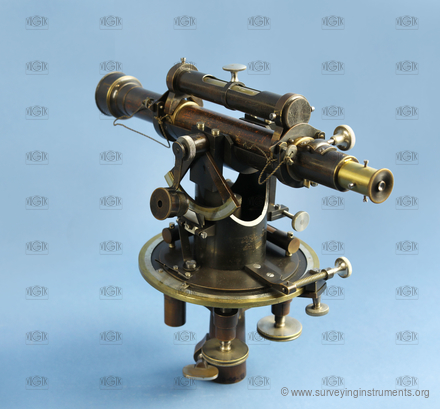

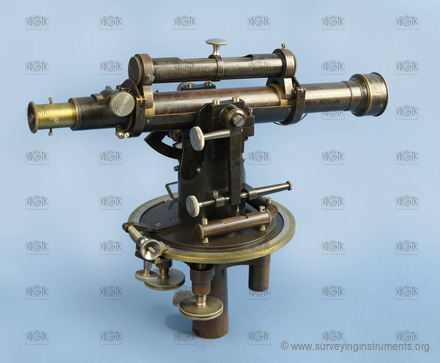

tachymetre – K. Grund
The manufacturer's name on the device
- K. Grund Prague
- VÚGTK: S0231
- Owner: unpublished
- Manufacturer: K. Grund
- Made: 01.01.1900
- Length: 265 mm
- Width: 144 mm
- Height: 262 mm
- Weight: 3580 g
- S/N:
- telescope type: reversible
- tripod connection: special
- type of clamp: peripheral clamp
- compensator: no
- unite: ° ' "
- construction of the distance meter: N/A
- autoreduction of the length: no
- variable telescope length: yes
- telescope length with retracted eyepiece: 310 mm
- telescope length with extended eyepiece: 331 mm
- telescope diameter: 25 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 145 mm

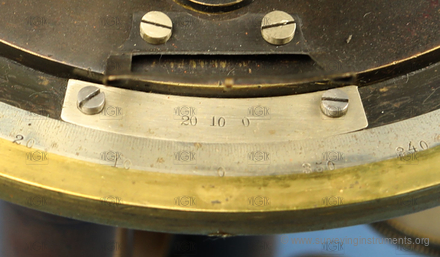

- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: none
- vertical circle: no
- segment of the vertical circle: yes
- segment's range of vertical circle: 80
- vertical circle diameter: 110 mm
- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: yes
- length of the cross level/level parallel with line of collimation: 64 mm
- bubble length of the cross level/level parallel with line of collimation: 8 mm
- length of the cross level/level perpendicular with line of collimation: 64 mm
- bubble length of the cross level/level perpendicular with line of collimation: 8 mm
- altitude buble: no
- leveling vial: yes
- length of leveling vial: 140 mm
- bubble length of the leveling vial: 25 mm
- striding level: no
- sensitivity of the striding level or leveling vial: 25 "
- sensitivity of the alidade level: 200 "
- designed for work: basic work
