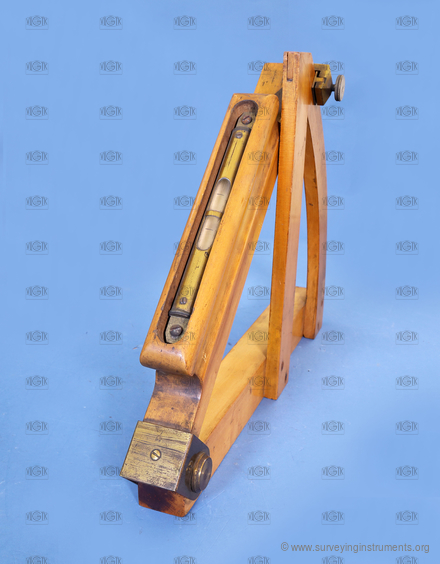

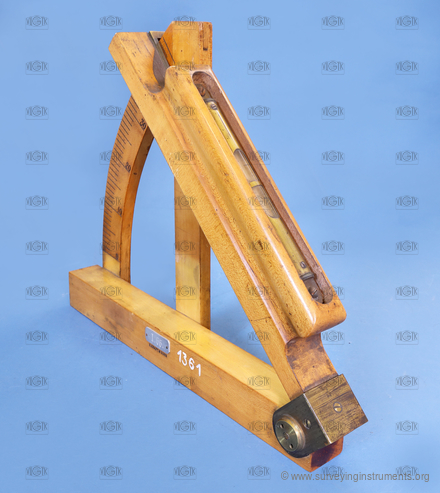

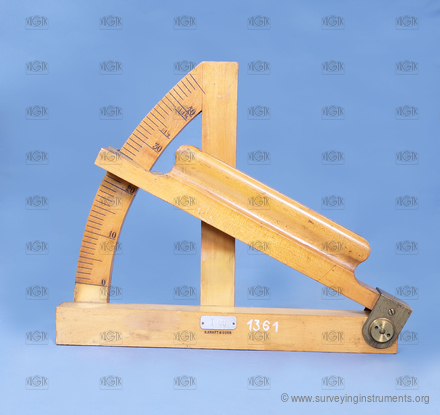

other devices for measuring angle – E. Kraft & Sohn in Wien
Description
The manufacturer's name on the device
E. Kraft & Sohn
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0236
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
E. Kraft & Sohn in Wien
Made:
01.01.1860
Length:
316
mm
Width:
63
mm
Height:
260
mm
Weight:
820
g
S/N:
I.66
Technical parameters
telescope type:
N/A
tripod connection:
N/A
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
construction of the distance meter:
N/A
altitude buble:
no
type of optical plummet:
none
compass:
none
horizontal circle:
no
vertical circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
45°
vertical circle diameter:
580
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1°
cross level:
no
length of leveling vial:
135
mm
bubble length of the leveling vial:
23
mm
striding level:
no
