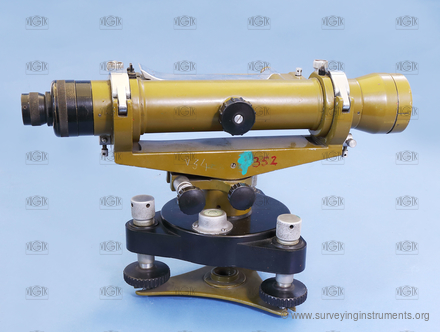

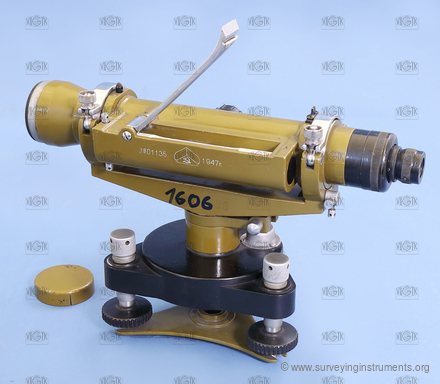

levelling instrument – --undefined--
Description
The manufacturer's name on the device
not specified
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0243
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
--undefined--
Made:
01.01.1947
Length:
271
mm
Width:
130
mm
Height:
176
mm
Weight:
2200
g
S/N:
01135
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
no
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
270
mm
telescope diameter:
33
mm
minimum telescope focusing distance:
2800
mm
telescope magnification:
28
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
130
mm
bubble length of the leveling vial:
25
mm
striding level:
no
designed for work:
basic work
