Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

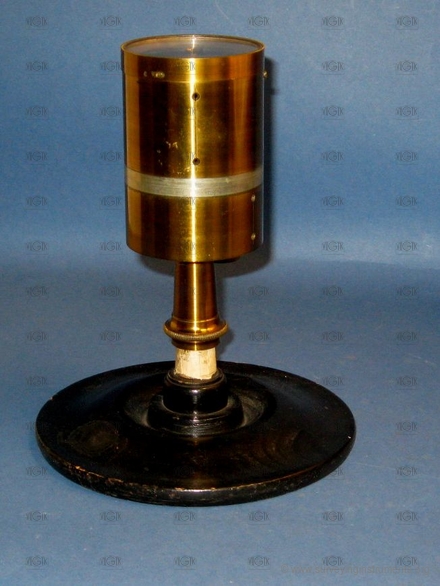

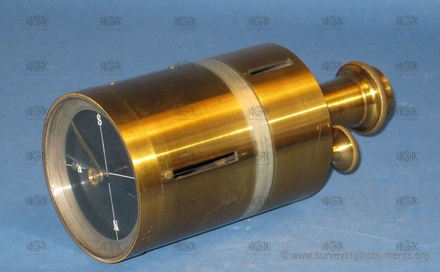

hlavice s buzolou

The manufacturer's name on the device

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0275
  • Owner: České vysoké učení technické v Praze - Stavební fakulta
  • Manufacturer: --undefined--
  • Made: 01.01.1890
  • Length: 70 mm
  • Width: 70 mm
  • Height: 153 mm
  • Weight: 687 g
  • S/N:

  • telescope type: N/A
  • tripod connection: pin
  • type of clamp: none
  • unite: ° ' "
  • the possibility of determining the elevation: no
  • compass: integrated
  • compass design: circle
  • compass diameter: 48 mm
  • smallest division of the compass scale: 1°
  • horizontal circle: yes
  • horizontal circle diameter: 50 mm
  • main reading scale of the horizontal circle: index
  • the smallest segment of the horizontal circle: 1°
  • number of reading scales of the horizontal circle: 1
  • vertical circle: no
  • segment of the vertical circle: no
  • designed for work: low precise work
