Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

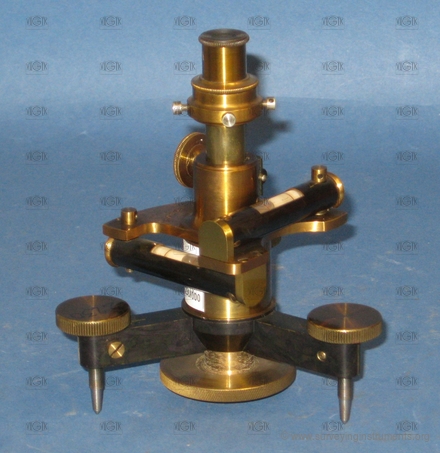

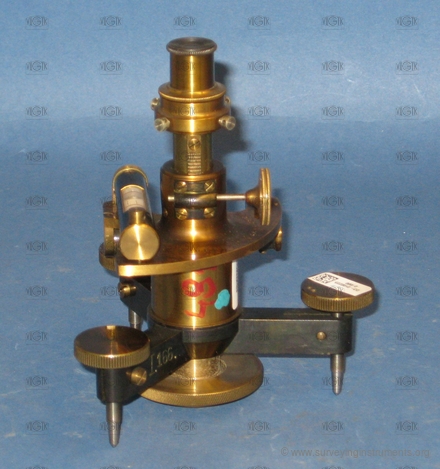

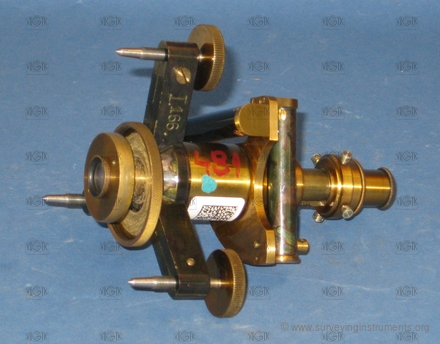

centrovač
The manufacturer's name on the device
- VÚGTK: S0305
- Owner: České vysoké učení technické v Praze - Stavební fakulta
- Manufacturer: Hildebrand
- Made: 01.01.1900
- Length: 90 mm
- Width: 90 mm
- Height: 120 mm
- Weight: 371 g
- S/N:
- cross hairs:
-
- telescope type: non-removable
- tripod connection: special
- type of clamp: endless
- compensator: no
- the possibility of determining the elevation: no
- elevation screw: no
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 99 mm
- telescope length with extended eyepiece: 118 mm
- telescope diameter: 7 mm
- minimum telescope focusing distance: 1800 mm
- type of optical plummet: none
- compass: none
- horizontal circle: no
- vertical circle: no
- cross level: yes
- length of the cross level/level parallel with line of collimation: 20 mm
- bubble length of the cross level/level parallel with line of collimation: 11 mm
- length of the cross level/level perpendicular with line of collimation: 20 mm
- bubble length of the cross level/level perpendicular with line of collimation: 11 mm
- striding level: no
- altitude buble: no
- designed for work: special work
