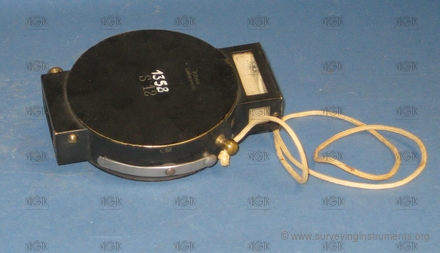

sklonoměr optický
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0325
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Reiss
Made:
01.01.1900
Length:
123
mm
Width:
91
mm
Height:
35
mm
Weight:
403
g
S/N:
Technical parameters
telescope type:
N/A
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
type of optical plummet:
none
compass:
none
horizontal circle:
no
vertical circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
±45°, resp. ±100%
vertical circle diameter:
85
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1° / 30´, resp. 2% / 1%
cross level:
no
striding level:
no
designed for work:
low precise work
