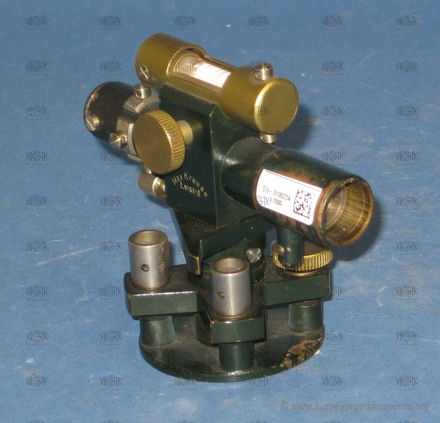

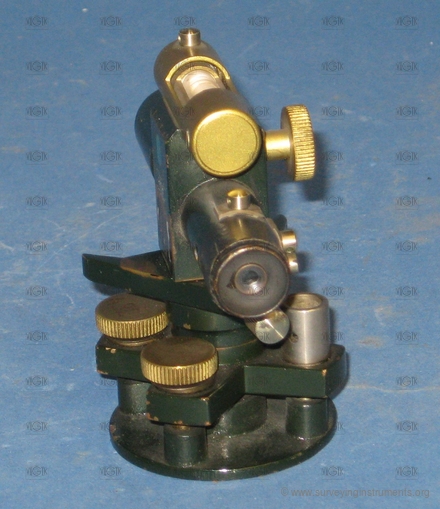

levelling instrument – Max Krause
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0329
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Max Krause
Made:
01.01.1925
Length:
92
mm
Width:
58
mm
Height:
75
mm
Weight:
295
g
S/N:
6608
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
special
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
no
view in the telescope:
inverted
variable telescope length:
no
telescope length with extended eyepiece:
93
mm
telescope diameter:
13
mm
minimum telescope focusing distance:
1400
mm
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
30
mm
bubble length of the leveling vial:
7
mm
striding level:
no
designed for work:
low precise work
