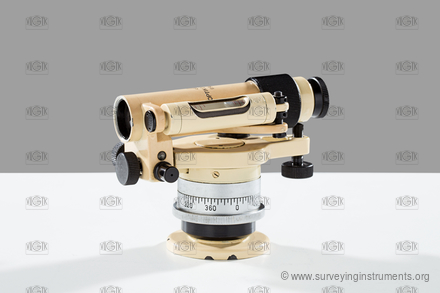

Kolibřík
Description
The manufacturer's name on the device
Optikotechna
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0007
Owner:
Národní technické muzeum
Manufacturer:
Optikotechna
Made:
01.01.1935
Length:
50
mm
Width:
45
mm
Height:
70
mm
Weight:
520
g
S/N:
09061
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
special
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
distance meter type:
optical
construction of the distance meter:
integrated
variable telescope length:
no
telescope length with retracted eyepiece:
95
mm
telescope length with extended eyepiece:
96
mm
telescope diameter:
20
mm
minimum telescope focusing distance:
1950
mm
telescope magnification:
10

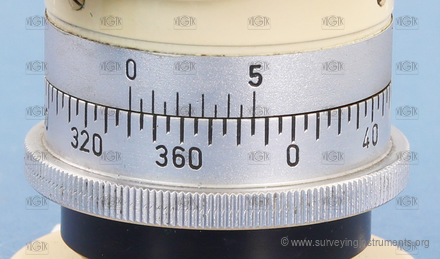

horizontal circle:
yes
horizontal circle diameter:
36
mm
main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
30'
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
49
mm
bubble length of the leveling vial:
17
mm
striding level:
no
sensitivity of the striding level or leveling vial:
65
"
