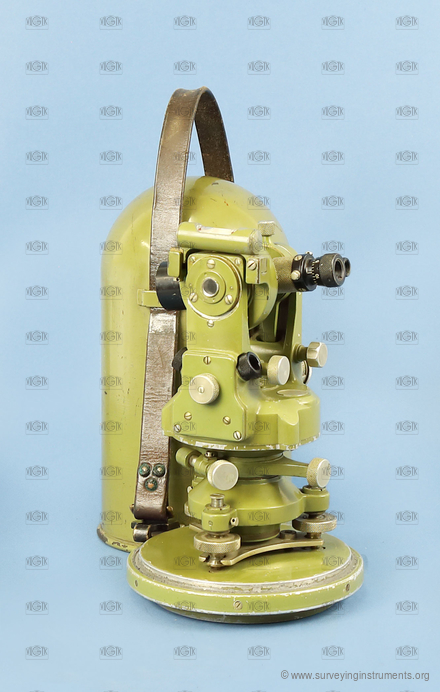

T0

The manufacturer's name on the device
  • WILD HEERBRUGG

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0110
  • Owner: Národní technické muzeum
  • Manufacturer: Wild Heerburgg
  • Made: 01.01.1950
  • Length: 110 mm
  • Width: 110 mm
  • Height: 190 mm
  • Weight: 2780 g
  • S/N: 9119

  • cross hairs:
  • NK_003
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with retracted eyepiece: 110 mm
  • telescope diameter: 25 mm
  • minimum telescope focusing distance: 1500 mm
  • telescope magnification: 15
  • type of optical plummet: none
  • compass: integrated
  • compass design: circle
  • compass diameter: 85 mm
  • horizontal circle diameter: 85 mm

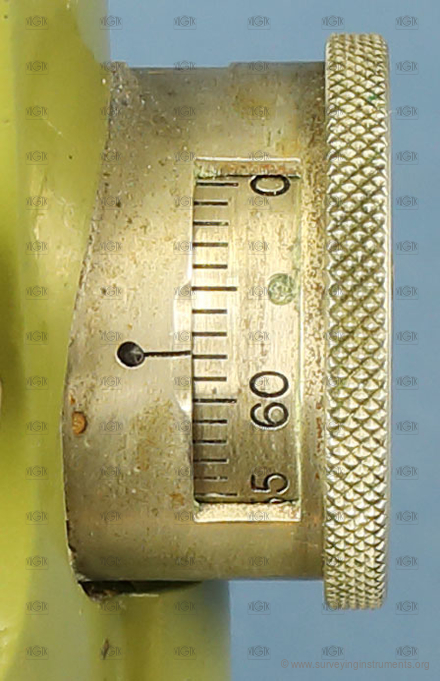

  • main reading scale of the horizontal circle: micrometer scale
  • number of reading scales of the horizontal circle: 2
  • the smallest segment of the horizontal circle: 1'
  • setting the horizontal circle to zero: circle clamp
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 55 mm
  • main reading scale of the vertical circle: micrometer scale
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 1'
  • cross level: no
  • leveling vial: no
  • striding level: no
  • altitude buble: yes
  • lenght of the altitude level: 48 mm
  • bubble length of the altitude level: 20 mm
  • sensitivity of the altitude level: 30 "
  • designed for work: basic work
