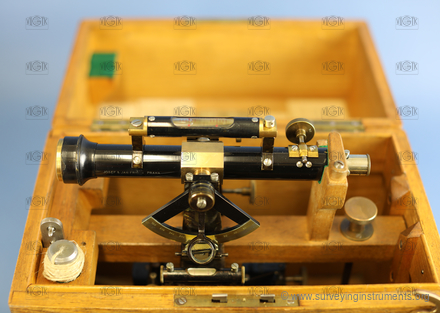

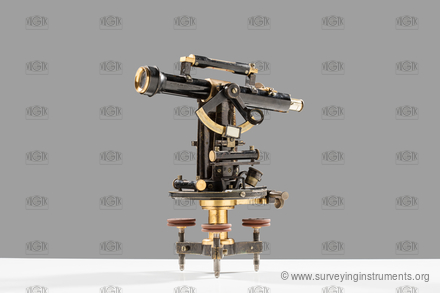

theodolite – J. & J. Frič
Description
The manufacturer's name on the device
Josef & Jan Frič Praha
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0056
Owner:
Národní technické muzeum
Manufacturer:
J. & J. Frič
Made:
01.01.1905
Length:
134
mm
Width:
215
mm
Height:
246
mm
Weight:
2260
g
S/N:
3672
Technical parameters
cross hairs:
telescope type:
flip over

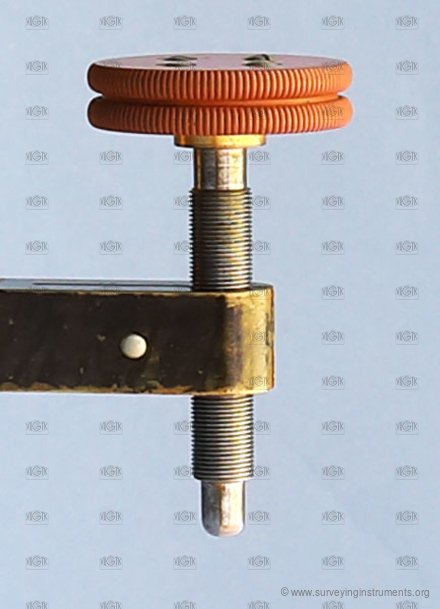

tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
construction of the distance meter:
N/A
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
214
mm
telescope length with extended eyepiece:
236
mm
telescope diameter:
30
mm
minimum telescope focusing distance:
2500
mm
telescope magnification:
25
type of optical plummet:
none
compass:
none
horizontal circle diameter:
114
mm

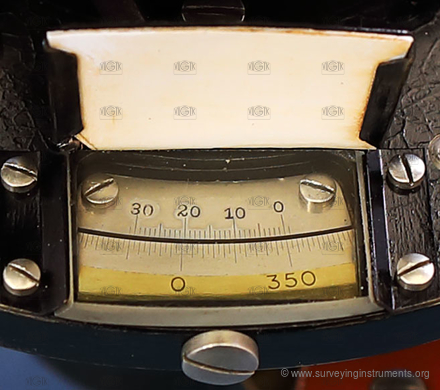

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1'
setting the horizontal circle to zero:
none
vertical circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
320° - 50˚
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1'
cross level:
yes
length of the cross level/level parallel with line of collimation:
60
mm
bubble length of the cross level/level parallel with line of collimation:
8
mm
length of the cross level/level perpendicular with line of collimation:
60
mm
bubble length of the cross level/level perpendicular with line of collimation:
8
mm
leveling vial:
yes
length of leveling vial:
78
mm
bubble length of the leveling vial:
18
mm
striding level:
no
altitude buble:
no
designed for work:
basic work
