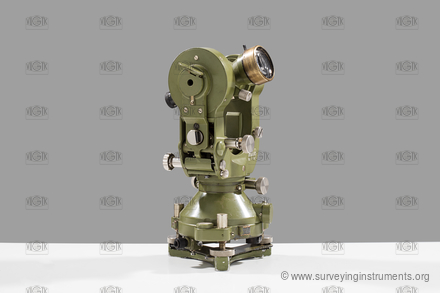

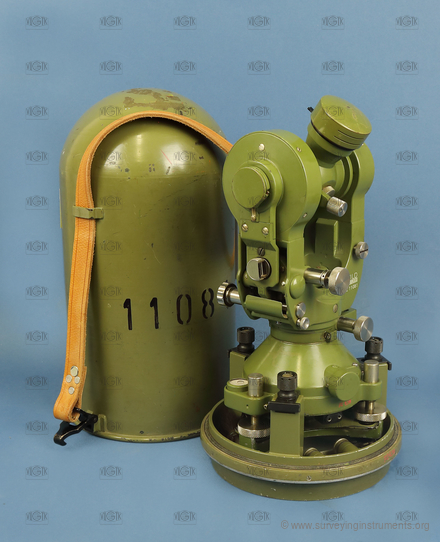

T3

The manufacturer's name on the device
  • Wild HEERBURGG

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0097
  • Owner: Národní technické muzeum
  • Manufacturer: Wild Heerburgg
  • Made: 01.01.1960
  • Length: 152 mm
  • Width: 152 mm
  • Height: 268 mm
  • Weight: 5510 g

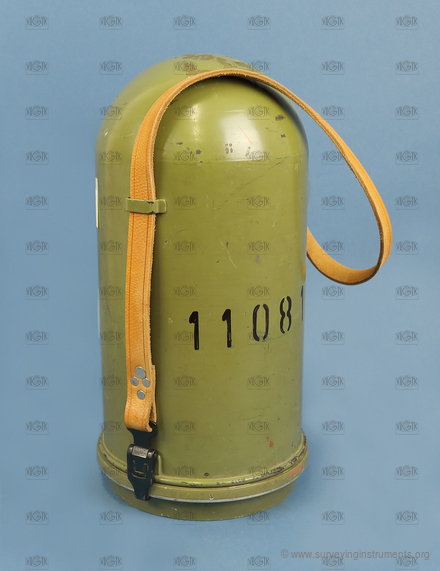

  • S/N: 11081

  • cross hairs:
  • NK_018
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with retracted eyepiece: 145 mm
  • telescope diameter: 40 mm
  • minimum telescope focusing distance: 1400 mm
  • telescope magnification: 30
  • type of optical plummet: in tribrach
  • compass: none
  • horizontal circle diameter: 100 mm
  • main reading scale of the horizontal circle: micrometer scale
  • number of reading scales of the horizontal circle: 1
  • the smallest segment of the horizontal circle: 1"
  • setting the horizontal circle to zero: horizontal circle drive knob
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 80 mm
  • main reading scale of the vertical circle: micrometer scale
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 1"
  • cross level: no
  • length of the cross level/level perpendicular with line of collimation: 60 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 22 mm
  • leveling vial: no
  • striding level: no
  • altitude buble: yes
  • lenght of the altitude level: 60 mm
  • sensitivity of the alidade level: 20 "
  • designed for work: precise work
