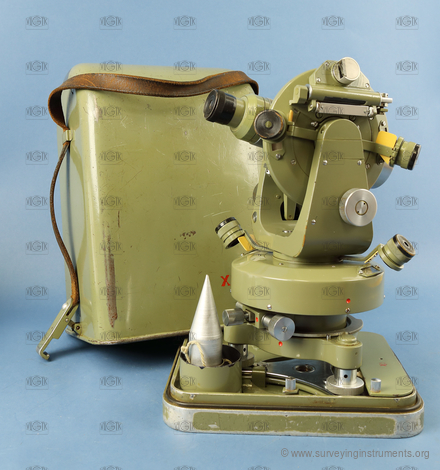

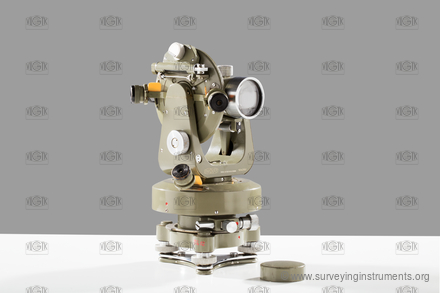

Th 30x

The manufacturer's name on the device
  • Meopta

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0102
  • Owner: Národní technické muzeum
  • Manufacturer: Meopta
  • Made: 01.01.1959
  • Length: 183 mm
  • Width: 170 mm
  • Height: 277 mm
  • Weight: 4750 g
  • S/N: 5042580

  • cross hairs:
  • NK_019
  • telescope type: flip over
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: gon
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with retracted eyepiece: 172 mm
  • telescope diameter: 42 mm
  • minimum telescope focusing distance: 1300 mm
  • telescope magnification: 28
  • type of optical plummet: none
  • compass: none
  • horizontal circle diameter: 130 mm
  • main reading scale of the horizontal circle: vernier
  • number of reading scales of the horizontal circle: 2
  • the smallest segment of the horizontal circle: 1'
  • setting the horizontal circle to zero: repeating
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 115 mm
  • main reading scale of the vertical circle: vernier
  • number of reading scales of the vertical circle: 2
  • the smallest segment of the vertical circle: 1'
  • cross level: yes
  • length of the cross level/level perpendicular with line of collimation: 70 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 17 mm
  • leveling vial: yes
  • length of leveling vial: 70 mm
  • bubble length of the leveling vial: 25 mm
  • striding level: no
  • altitude buble: yes
  • lenght of the altitude level: 65 mm
  • sensitivity of the striding level or leveling vial: 20 "
  • sensitivity of the alidade level: 35 "
  • designed for work: basic work
