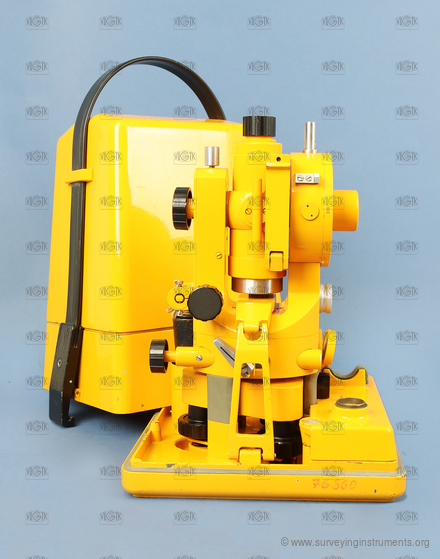

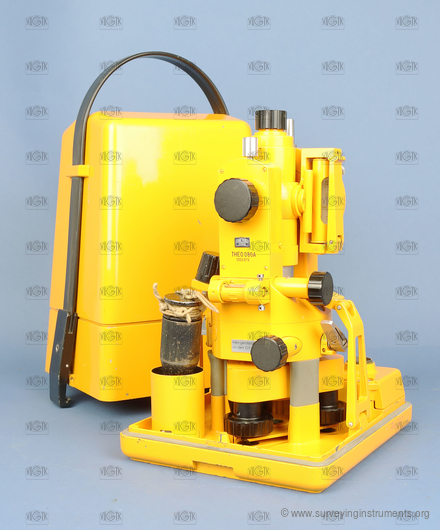

Theo 080A
Description
The manufacturer's name on the device
CARL ZEISS JENA, Hergestellt in der DDR
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0108
Owner:
Národní technické muzeum
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1982
Length:
140
mm
Width:
130
mm
Height:
247
mm
Weight:
1960
g
S/N:
1003879
Technical parameters
cross hairs:
telescope type:
revolved
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
gon
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
erected
variable telescope length:
no
telescope length with retracted eyepiece:
127
mm
telescope diameter:
31
mm
minimum telescope focusing distance:
780
mm
telescope magnification:
18
type of optical plummet:
none
compass:
none
horizontal circle diameter:
90
mm
main reading scale of the horizontal circle:
index
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1°
setting the horizontal circle to zero:
circle clamp
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
80
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1°
cross level:
yes
length of the cross level/level parallel with line of collimation:
40
mm
bubble length of the cross level/level parallel with line of collimation:
8
mm
leveling vial:
yes
length of leveling vial:
62
mm
bubble length of the leveling vial:
22
mm
striding level:
no
altitude buble:
no
sensitivity of the striding level or leveling vial:
35
"
sensitivity of the alidade level:
120
"
