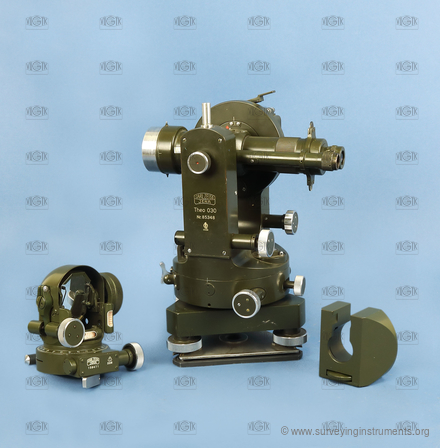

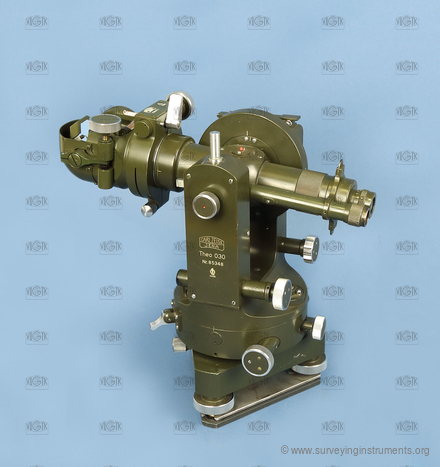

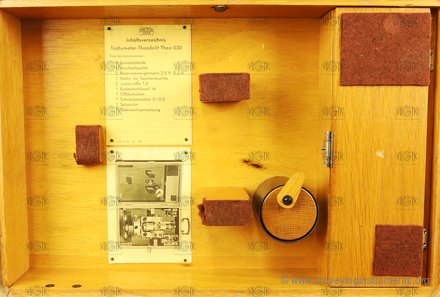

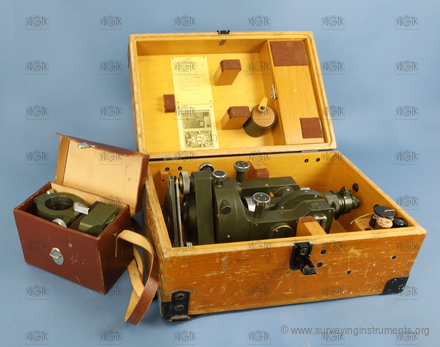

Theo 030
Description
The manufacturer's name on the device
Carl Zeiss Jena Theo 030
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0112
Owner:
Vysoké učení technické v Brně
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1950
Length:
195
mm
Width:
143
mm
Height:
250
mm
Weight:
4000
g
S/N:
85348
Technical parameters
cross hairs:
telescope type:
flip over
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
gon
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
195
mm
telescope diameter:
35
mm
minimum telescope focusing distance:
2000
mm
telescope magnification:
20
type of optical plummet:
none
compass:
none
compass design:
tubular compass
horizontal circle diameter:
115
mm
main reading scale of the horizontal circle:
reading microscope
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
30"
setting the horizontal circle to zero:
circle clamp
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
95
mm
main reading scale of the vertical circle:
reading microscope
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
30"
cross level:
no
length of the cross level/level perpendicular with line of collimation:
70
mm
bubble length of the cross level/level perpendicular with line of collimation:
18
mm
leveling vial:
no
striding level:
no
altitude buble:
yes
lenght of the altitude level:
70
mm
sensitivity of the alidade level:
30
"
sensitivity of the altitude level:
30
"
designed for work:
basic work
