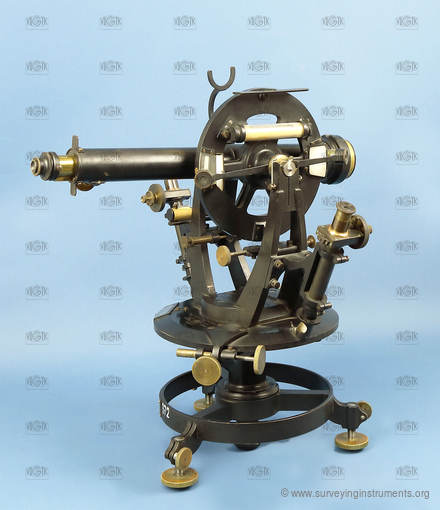

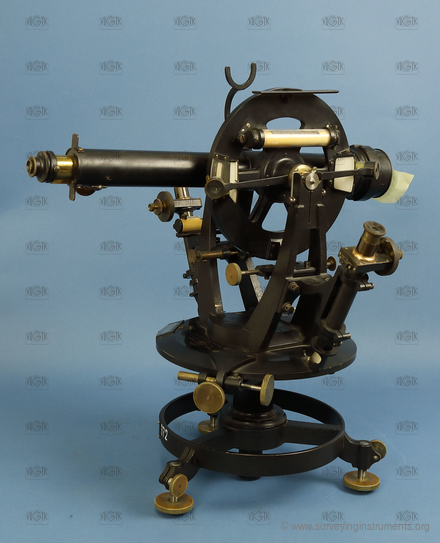

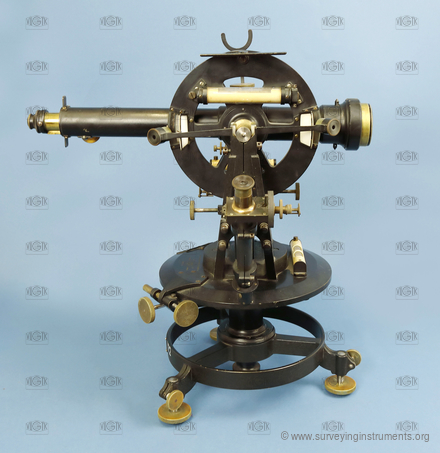

theodolite – Hildebrand
Description
The manufacturer's name on the device
Max Hildebrand früher AUG Lingke u. Co. G. m. Freiberg b. H. Sachsen.
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0117
Owner:
Vysoké učení technické v Brně
Manufacturer:
Hildebrand
Made:
01.01.1875
Length:
405
mm
Width:
380
mm
Height:
460
mm
Weight:
15040
g
S/N:
64501
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
construction of the distance meter:
N/A
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
400
mm
telescope length with extended eyepiece:
455
mm
telescope diameter:
40
mm
minimum telescope focusing distance:
3350
mm
telescope magnification:
50
type of optical plummet:
none
compass:
none

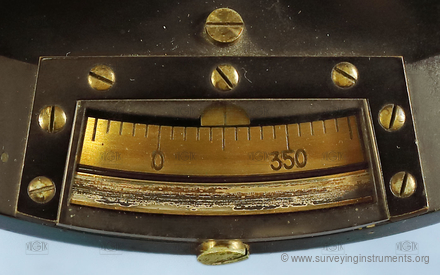

horizontal circle diameter:
215
mm

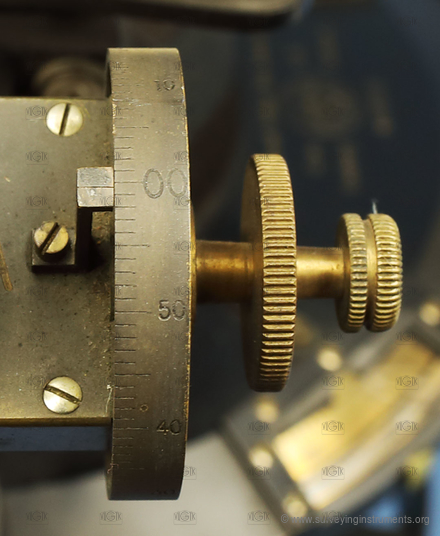

main reading scale of the horizontal circle:
reading microscope
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
10"
setting the horizontal circle to zero:
none

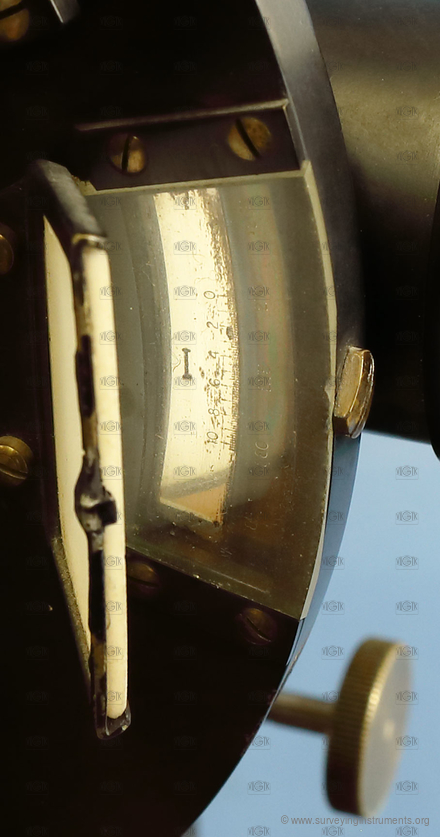

vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
175
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
2
the smallest segment of the vertical circle:
10"
cross level:
yes
length of the cross level/level parallel with line of collimation:
90
mm
bubble length of the cross level/level parallel with line of collimation:
23
mm
length of the cross level/level perpendicular with line of collimation:
90
mm
bubble length of the cross level/level perpendicular with line of collimation:
22
mm
leveling vial:
no
striding level:
no
altitude buble:
yes
lenght of the altitude level:
105
mm
bubble length of the altitude level:
25
mm
designed for work:
precise work
