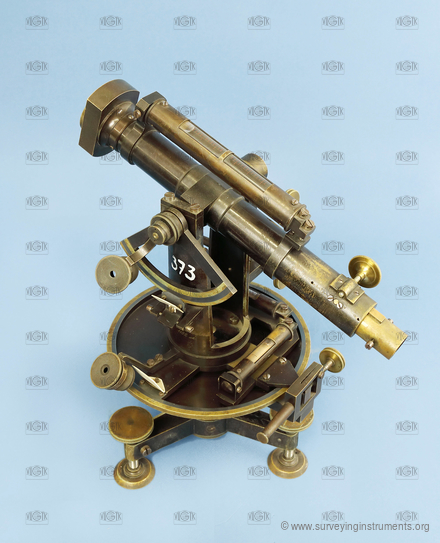

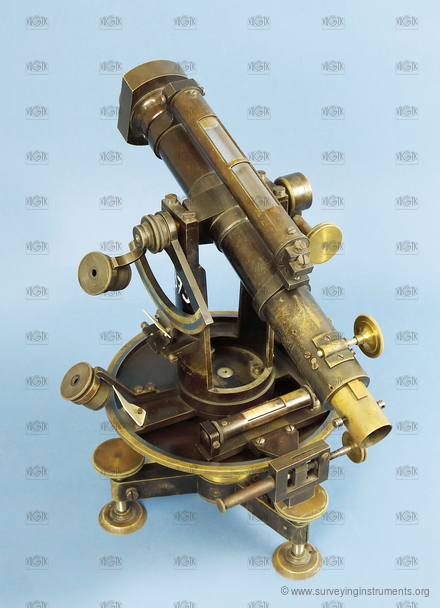

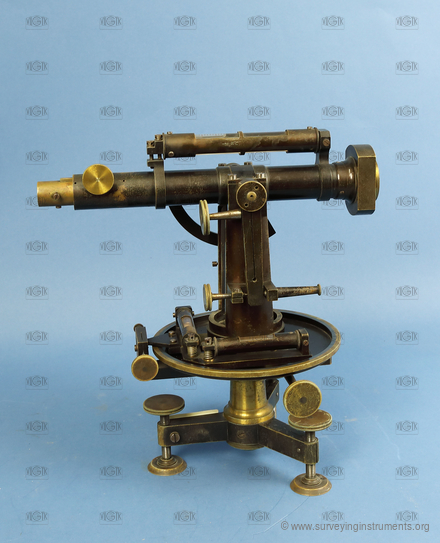

tachymetre – Süss

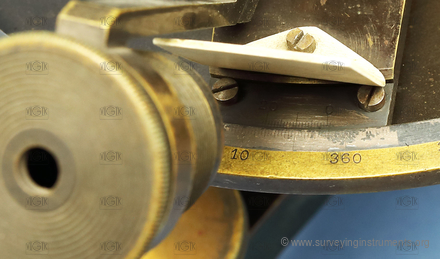

The manufacturer's name on the device
- Süss N. Budapest
- VÚGTK: S0118
- Owner: Vysoké učení technické v Brně
- Manufacturer: Süss
- Made: 01.01.1910
- Length: 260 mm
- Width: 187 mm
- Height: 283 mm
- Weight: 4610 g
- S/N: 1102
- telescope type: flip over
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- distance meter type: optical
- construction of the distance meter: integrated
- autoreduction of the length: no
- variable telescope length: yes
- telescope length with retracted eyepiece: 260 mm
- telescope length with extended eyepiece: 303 mm
- telescope diameter: 30 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 160 mm
- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: none
- vertical circle: no

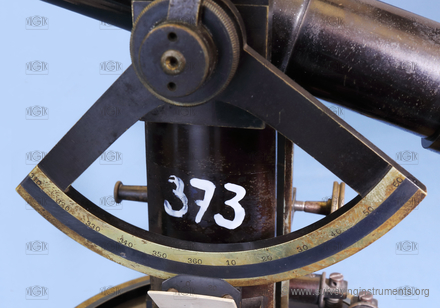

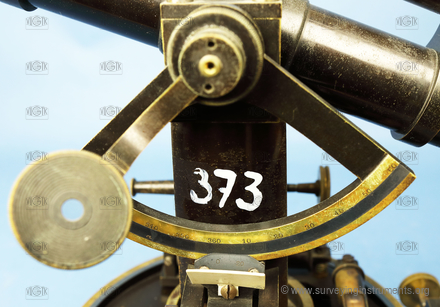

- segment of the vertical circle: yes
- segment's range of vertical circle: 310 - 60
- vertical circle diameter: 120 mm
- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: yes
- length of the cross level/level parallel with line of collimation: 67 mm
- bubble length of the cross level/level parallel with line of collimation: 12 mm
- length of the cross level/level perpendicular with line of collimation: 67 mm
- bubble length of the cross level/level perpendicular with line of collimation: 11 mm
- altitude buble: no
- leveling vial: yes
- length of leveling vial: 124 mm
- bubble length of the leveling vial: 35 mm
- striding level: no
- sensitivity of the striding level or leveling vial: 30 "
- designed for work: basic work
