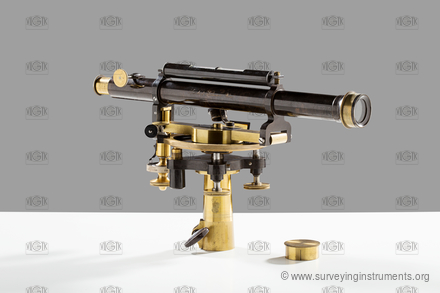

levelling instrument – Starke & Kammerer
Description
The manufacturer's name on the device
Starke & Kammerer Wien
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0015
Owner:
Národní technické muzeum
Manufacturer:
Starke & Kammerer
Made:
01.01.1867
Length:
124
mm
Width:
124
mm
Height:
209
mm
Weight:
2920
g
S/N:
2587
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
pin with 4 horizontal screws
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "

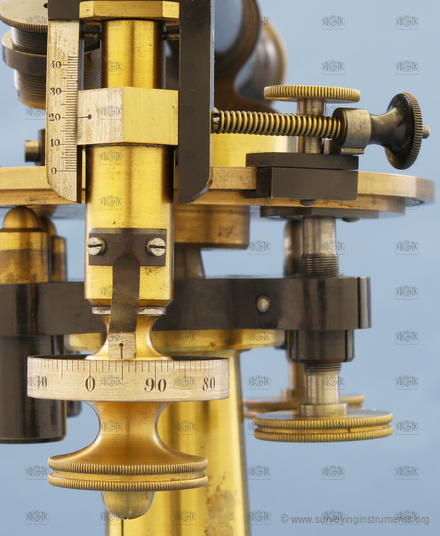

elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
373
mm
telescope length with extended eyepiece:
398
mm
telescope diameter:
36
mm
minimum telescope focusing distance:
3500
mm

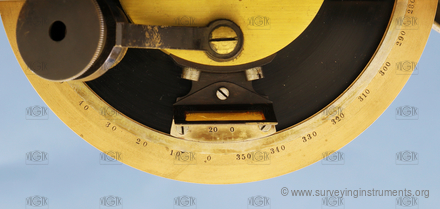

horizontal circle:
yes
horizontal circle diameter:
123
mm
main reading scale of the horizontal circle:
vernier
the smallest segment of the horizontal circle:
1'
segment of the vertical circle:
no
main reading scale of the vertical circle:
micrometer
leveling vial:
yes
length of leveling vial:
150
mm
striding level:
no
designed for work:
basic work
