other instruments – Kraft
Description
The manufacturer's name on the device

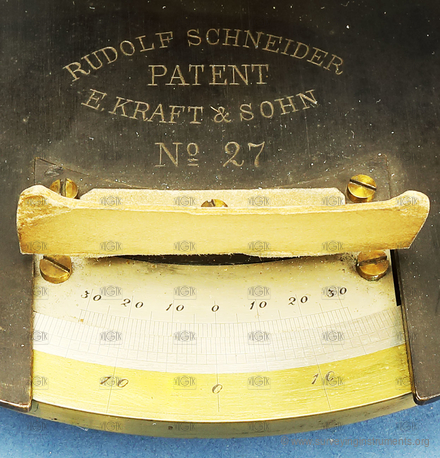

RUDOLF SCHNEIDER PATENT E.KRAFT & SOHN N
o
27
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0139
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
Kraft
Made:
01.01.1870
Length:
244
mm
Width:
170
mm
Height:
305
mm
Weight:
2290
g
S/N:
27
Technical parameters
tripod connection:
special
type of clamp:
none
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
elevation screw:
no
variable telescope length:
no
type of optical plummet:
none
compass:
none
horizontal circle:
yes
horizontal circle diameter:
155
mm
main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
1'
setting the horizontal circle to zero:
none
vertical circle:
no
segment of the vertical circle:
no
cross level:
no
designed for work:
special work
