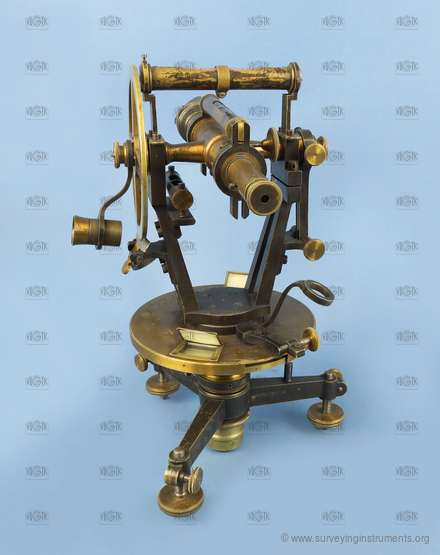

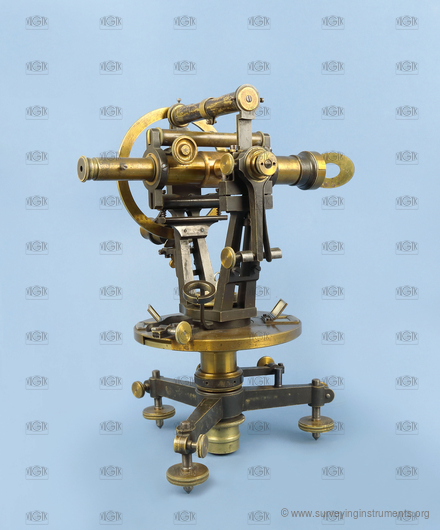

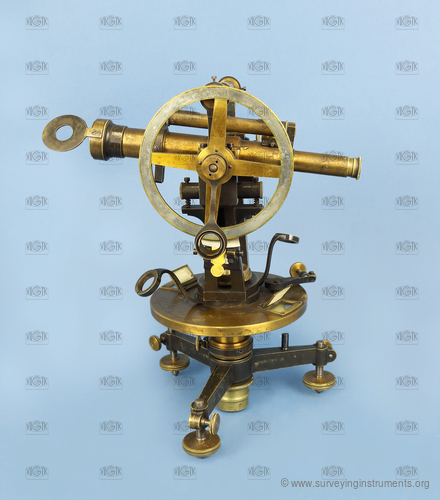

theodolite – Lingke
Description
The manufacturer's name on the device
A. Lingke & Co. Freiberg i. S.
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0146
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
Lingke
Made:
01.01.1870
Length:
235
mm
Width:
218
mm
Height:
317
mm
Weight:
5200
g
S/N:
Technical parameters
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
230
mm
telescope length with extended eyepiece:
258
mm
telescope diameter:
25
mm
minimum telescope focusing distance:
8000
mm
telescope magnification:
8
type of optical plummet:
none
compass:
none
horizontal circle diameter:
145
mm

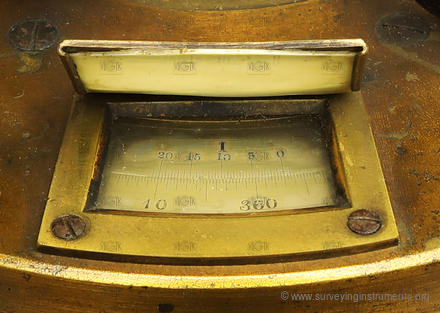

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
30"
setting the horizontal circle to zero:
none
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
120
mm

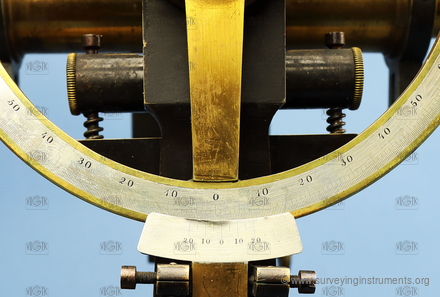

main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1'
cross level:
yes
length of the cross level/level parallel with line of collimation:
70
mm
leveling vial:
yes
length of leveling vial:
104
mm
bubble length of the leveling vial:
16
mm
striding level:
yes
bubble length of the striding level:
110
mm
bubble length of the striding level:
28
mm
altitude buble:
no
sensitivity of the striding level or leveling vial:
50
"
designed for work:
basic work
