Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

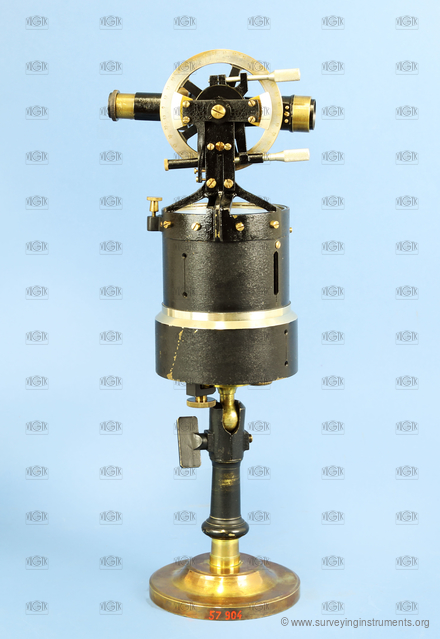

theodolite – --undefined--

The manufacturer's name on the device
  • not specified

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0166
  • Owner: Národní technické muzeum
  • Manufacturer: --undefined--
  • Made: 01.01.1930
  • Length: 142 mm
  • Width: 100 mm
  • Height: 348 mm
  • Weight: 2130 g
  • S/N:

  • cross hairs:
  • NK_004
  • telescope type: flip over
  • tripod connection: special
  • type of clamp: peripheral clamp
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: yes
  • telescope length with retracted eyepiece: 142 mm
  • telescope length with extended eyepiece: 150 mm
  • telescope diameter: 15 mm
  • minimum telescope focusing distance: 3430 mm
  • telescope magnification: 4
  • type of optical plummet: none

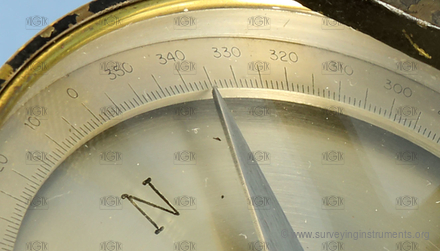

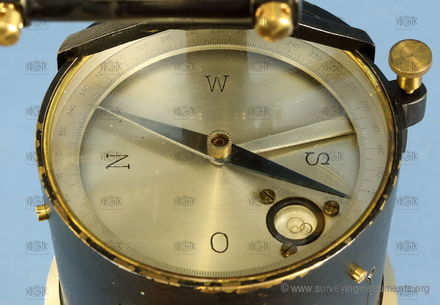

  • compass: integrated
  • compass design: circle
  • compass diameter: 85 mm
  • smallest division of the compass scale: 1°
  • horizontal circle diameter: 104 mm

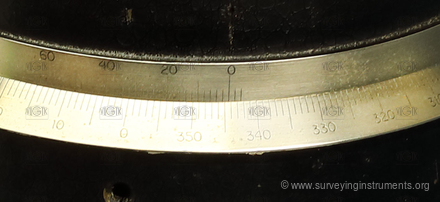

  • main reading scale of the horizontal circle: vernier
  • number of reading scales of the horizontal circle: 2
  • the smallest segment of the horizontal circle: 2´
  • setting the horizontal circle to zero: none
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 80 mm

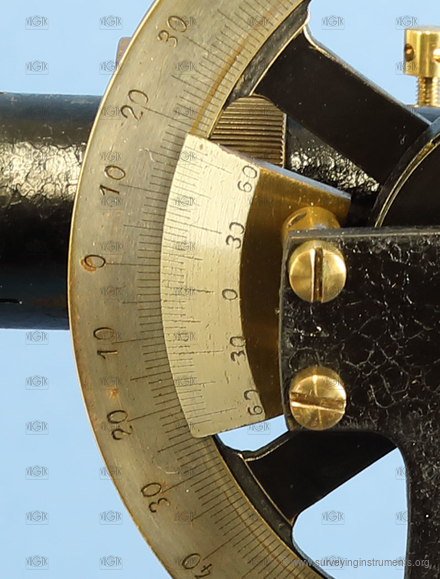

  • main reading scale of the vertical circle: vernier
  • number of reading scales of the vertical circle: 2
  • the smallest segment of the vertical circle: 3´
  • cross level: no
  • leveling vial: yes
  • length of leveling vial: 61 mm
  • bubble length of the leveling vial: 8 mm
  • striding level: no
  • altitude buble: no
  • sensitivity of the striding level or leveling vial: 120 "
  • designed for work: low precise work
