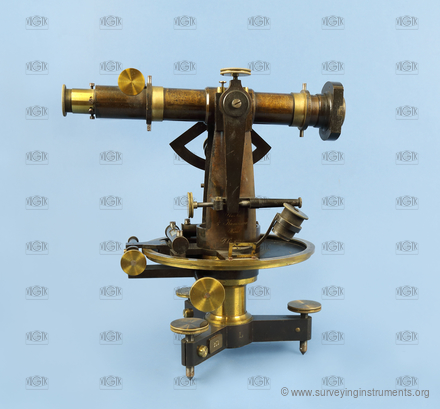

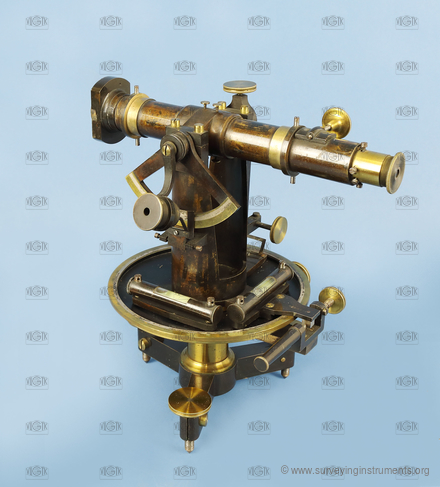

tachymetre – Starke & Kammerer
The manufacturer's name on the device
- Starke & Kammerer Wien
- VÚGTK: S0147
- Owner: Hornicko-geologická fakulta, VŠB-TUO
- Manufacturer: Starke & Kammerer
- Made: 01.01.1880
- Length: 250 mm
- Width: 177 mm
- Height: 260 mm
- Weight: 4400 g
- S/N: 2530
- telescope type: flip over
- tripod connection: tribrach
- type of clamp: peripheral clamp
- compensator: no
- unite: ° ' "
- variable telescope length: yes
- telescope length with retracted eyepiece: 245 mm
- telescope length with extended eyepiece: 265 mm
- telescope diameter: 25 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 160 mm

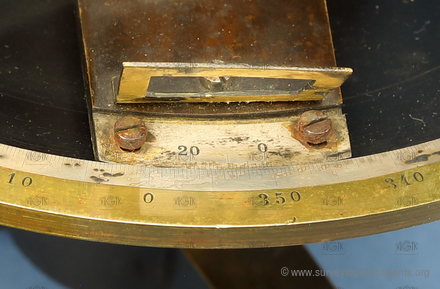

- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: none
- vertical circle: no
- segment of the vertical circle: yes
- segment's range of vertical circle: 100
- vertical circle diameter: 120 mm

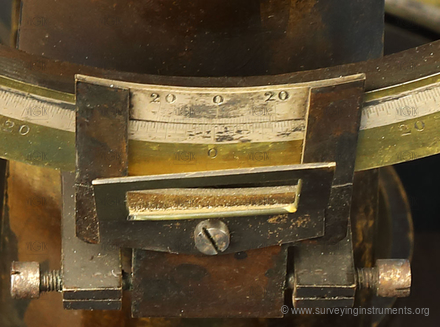

- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: yes
- length of the cross level/level parallel with line of collimation: 77 mm
- bubble length of the cross level/level parallel with line of collimation: 12 mm
- length of the cross level/level perpendicular with line of collimation: 77 mm
- bubble length of the cross level/level perpendicular with line of collimation: 14 mm
- altitude buble: no
- leveling vial: no
- striding level: no
- designed for work: basic work
