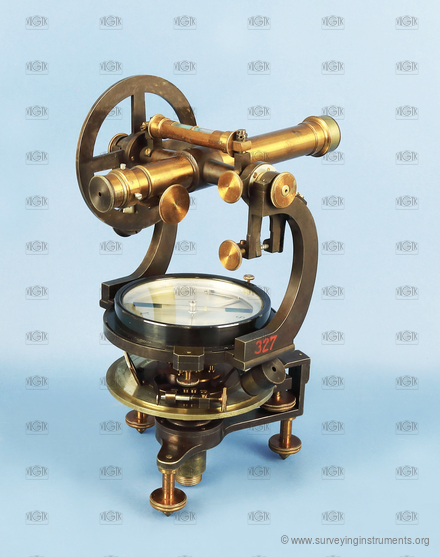

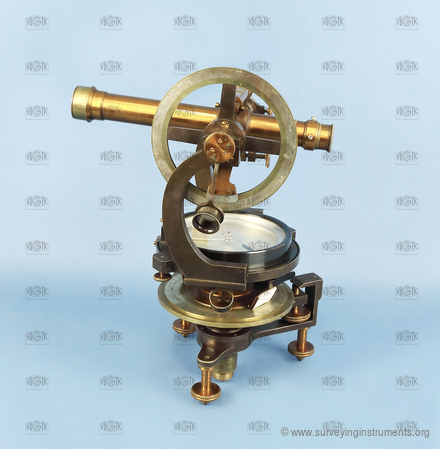

theodolite – Osterland
Description
The manufacturer's name on the device
not specified
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0150
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
Osterland
Made:
01.01.1870
Length:
235
mm
Width:
175
mm
Height:
313
mm
Weight:
5310
g
S/N:
Technical parameters
cross hairs:
telescope type:
flip over
tripod connection:
special
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
construction of the distance meter:
N/A
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
232
mm
telescope length with extended eyepiece:
288
mm
telescope diameter:
21
mm
minimum telescope focusing distance:
1500
mm
telescope magnification:
20
type of optical plummet:
none

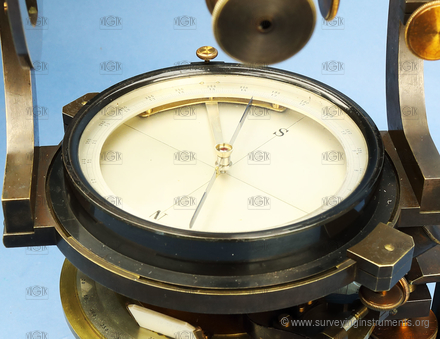

compass:
integrated
compass design:
circle
compass diameter:
115
mm
smallest division of the compass scale:
30´´
horizontal circle diameter:
120
mm

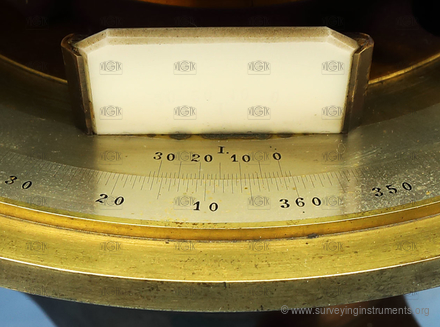

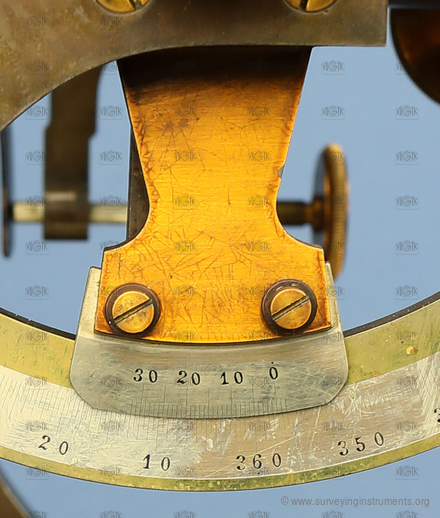

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
1'
setting the horizontal circle to zero:
none
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
120
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1'
cross level:
no
length of the cross level/level perpendicular with line of collimation:
80
mm
bubble length of the cross level/level perpendicular with line of collimation:
25
mm
leveling vial:
no
striding level:
yes
altitude buble:
no
sensitivity of the alidade level:
40
"
designed for work:
precise work
