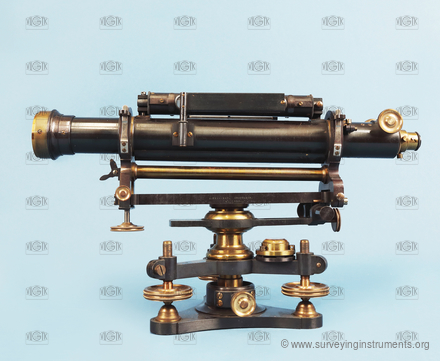

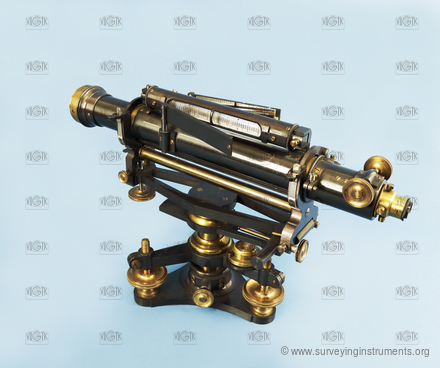

levelling instrument – Tesdorpf
Description
The manufacturer's name on the device
L.TESDORPF STUTTAGRT.
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0153
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
Tesdorpf
Made:
01.01.1900
Length:
343
mm
Width:
145
mm
Height:
187
mm
Weight:
3790
g
S/N:
1158
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
343
mm
telescope length with extended eyepiece:
388
mm
telescope diameter:
30
mm
minimum telescope focusing distance:
2900
mm
telescope magnification:
40
horizontal circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
146
mm
bubble length of the leveling vial:
43
mm
sensitivity of the striding level or leveling vial:
8
"
designed for work:
precise work
