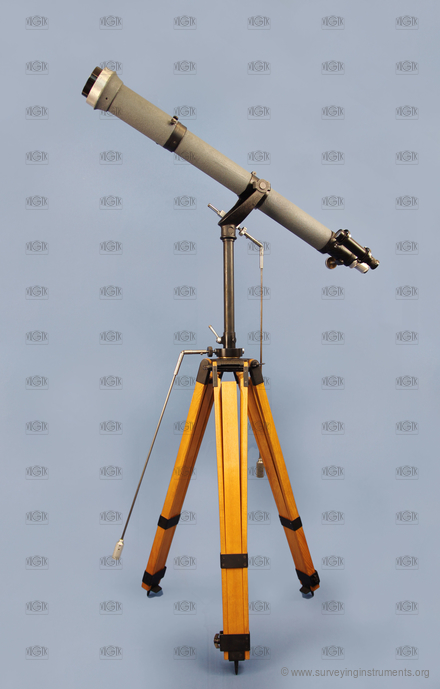

dalekohled astron
Description

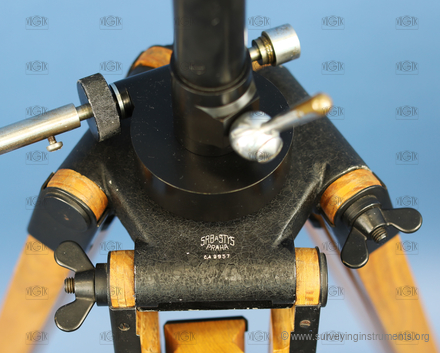

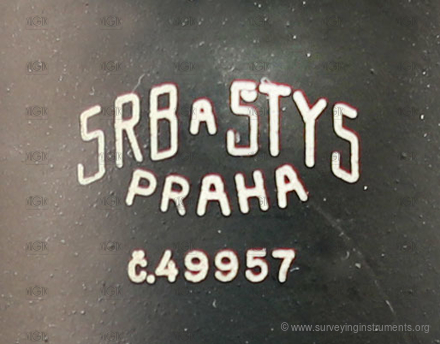

The manufacturer's name on the device
Srb a Štys Praha
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0182
Owner:
Národní technické muzeum
Manufacturer:
Srb a Štys
Made:
01.01.1938
Length:
990
mm
Width:
600
mm
Height:
1333
mm
Weight:
12730
g
S/N:
49957
Technical parameters
telescope type:
non-removable
tripod connection:
special
type of clamp:
clamp on the axis
variable telescope length:
yes

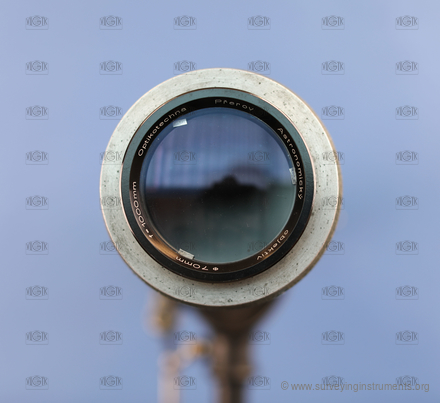

telescope diameter:
67
mm
telescope length with retracted eyepiece:
990
mm
telescope length with extended eyepiece:
1100
mm
telescope magnification:
30
setting the horizontal circle to zero:
none
horizontal circle:
no
vertical circle:
no
segment of the vertical circle:
no
compass:
none
cross level:
no
leveling vial:
no
striding level:
no
designed for work:
special work
