levelling instrument – Spitra
Description

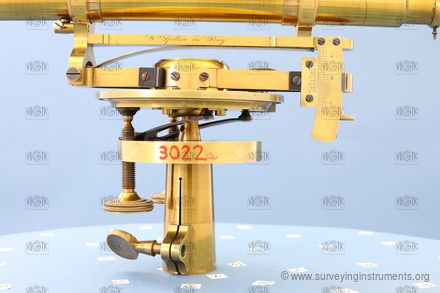

The manufacturer's name on the device
W. Spitra in Prag
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0002
Owner:
Národní technické muzeum
Manufacturer:
Spitra
Made:
01.02.1850
Length:
117
mm
Width:
170
mm
Height:
210
mm
Weight:
2240
g
S/N:
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
special
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
300
mm
telescope length with extended eyepiece:
328
mm
telescope diameter:
33
mm
minimum telescope focusing distance:
6000
mm
telescope magnification:
8

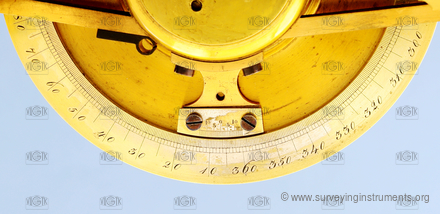

horizontal circle:
yes
horizontal circle diameter:
107
mm
main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1'

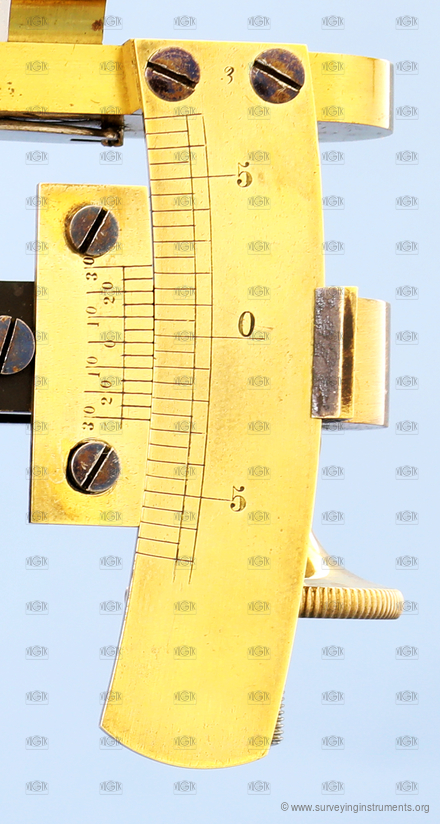

segment of the vertical circle:
yes
segment's range of vertical circle:
-5°-+5°
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
5'
cross level:
no
leveling vial:
no
striding level:
yes
bubble length of the striding level:
115
mm
bubble length of the striding level:
25
mm
sensitivity of the striding level or leveling vial:
20
"
designed for work:
basic work
