theodolite – SSSR

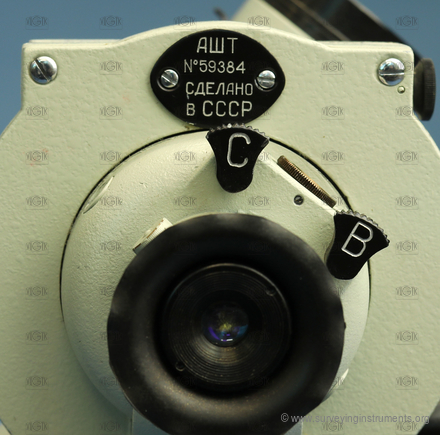

The manufacturer's name on the device
  • AST SSSR

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0189
  • Owner: Národní technické muzeum
  • Manufacturer: SSSR
  • Made: 01.01.1965
  • Length: 200 mm
  • Width: 180 mm
  • Height: 215 mm
  • Weight: 2680 g
  • S/N: 59384

  • cross hairs:
  • NK_039
  • telescope type: non-removable
  • tripod connection: tribrach
  • type of clamp: endless
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: no
  • construction of the distance meter: N/A
  • view in the telescope: erected
  • variable telescope length: no
  • telescope length with retracted eyepiece: 245 mm
  • telescope diameter: 40 mm
  • telescope magnification: 20
  • type of optical plummet: none
  • compass: integrated
  • compass design: tubular compass
  • horizontal circle diameter: 110 mm
  • main reading scale of the horizontal circle: index
  • number of reading scales of the horizontal circle: 1
  • the smallest segment of the horizontal circle: 6´
  • setting the horizontal circle to zero: none
  • vertical circle: yes
  • segment of the vertical circle: no
  • segment's range of vertical circle: 180
  • vertical circle diameter: 100 mm
  • main reading scale of the vertical circle: index
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 6´
  • cross level: no
  • length of the cross level/level parallel with line of collimation: 47 mm
  • bubble length of the cross level/level parallel with line of collimation: 10 mm
  • leveling vial: no
  • striding level: no
  • altitude buble: no
  • sensitivity of the alidade level: 60 "
  • designed for work: special work
