Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

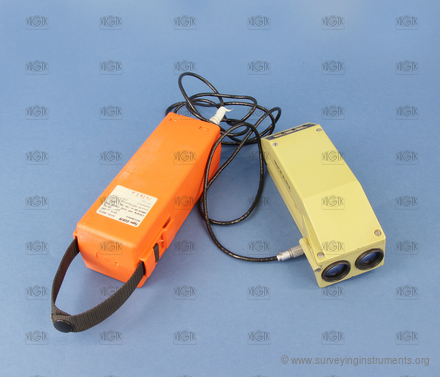

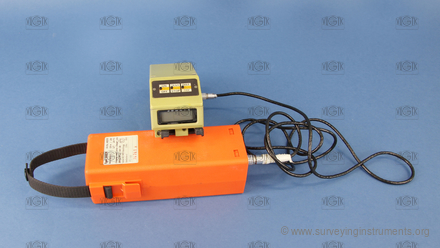

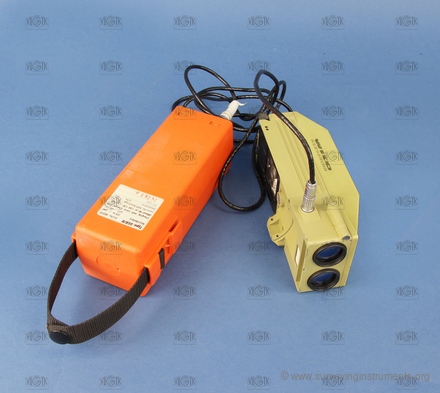

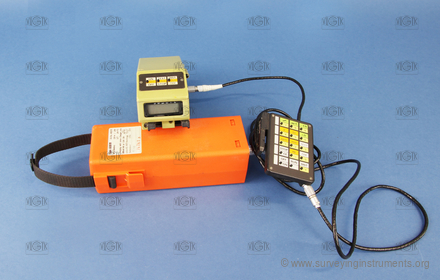

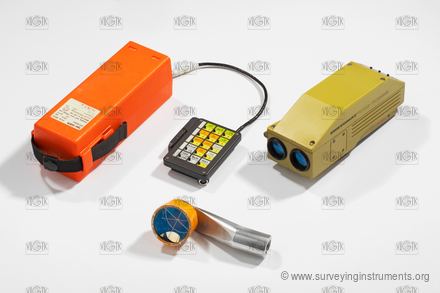

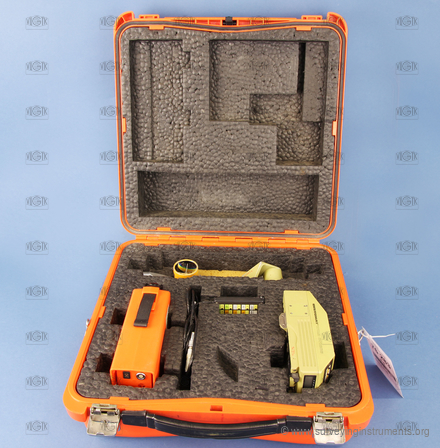

DISTOMAT DI1000

The manufacturer's name on the device
  • WILD HEERBRUGG

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0212
  • Owner: Národní technické muzeum
  • Manufacturer: Wild Heerburgg
  • Made: 01.01.1970
  • Length: 180 mm
  • Width: 69 mm
  • Height: 73 mm
  • Weight: 640 g
  • S/N: 60902

  • telescope type: special
  • tripod connection: N/A
  • type of clamp: none
  • compensator: no
  • unite: meter
  • striding level: no
  • the possibility of determining the elevation: no
  • distance meter type: electronic
  • construction of the distance meter: attachable
  • distance meter measuring range: 1000 m
  • autoreduction of the length: no
  • altitude buble: no
  • variable telescope length: no
  • telescope diameter: 20 mm
  • type of optical plummet: none
  • horizontal circle: no
  • setting the horizontal circle to zero: none
  • vertical circle: no
  • segment of the vertical circle: no
  • cross level: no
  • designed for work: precise work
