other devices for measuring angle – Müller
Description

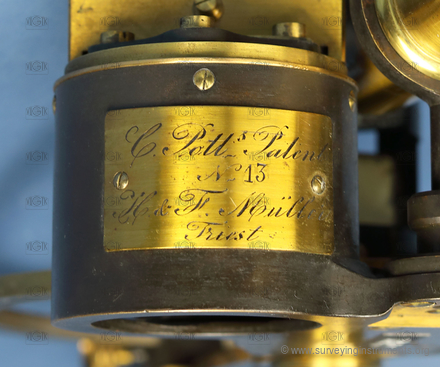

The manufacturer's name on the device
C. Potl Patent, No. 13 H. & F. Müller Triest
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0224
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
Müller
Made:
01.01.1860
Length:
508
mm
Width:
170
mm
Height:
192
mm
Weight:
2150
g
S/N:
253
Technical parameters
telescope type:
non-removable
tripod connection:
N/A
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
construction of the distance meter:
N/A
altitude buble:
no
view in the telescope:
erected
variable telescope length:
no
telescope length with retracted eyepiece:
85
mm
telescope diameter:
23
mm
type of optical plummet:
none
compass:
none

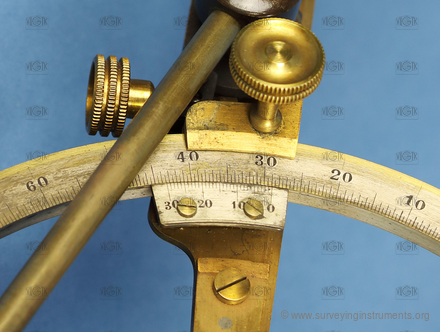

horizontal circle:
yes
horizontal circle diameter:
170
mm
main reading scale of the horizontal circle:
vernier
the smallest segment of the horizontal circle:
1'
number of reading scales of the horizontal circle:
2
setting the horizontal circle to zero:
none
vertical circle:
no
segment of the vertical circle:
no
cross level:
no
striding level:
no
designed for work:
special work
