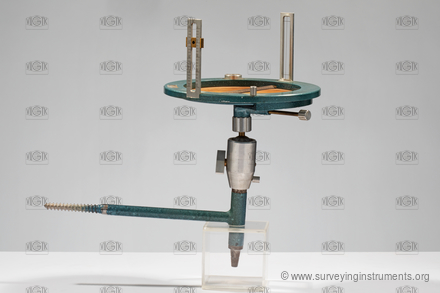

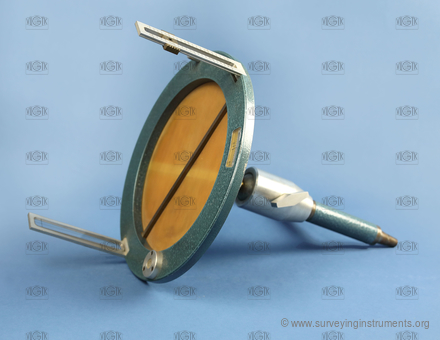

other devices for measuring angle – VÚGTK
Description
The manufacturer's name on the device
VÚGTK
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0230
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
VÚGTK
Made:
01.01.1960
Length:
355
mm
Width:
200
mm
Height:
323
mm
Weight:
1550
g
S/N:
714;10914
Technical parameters
telescope type:
N/A
tripod connection:
pin
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
construction of the distance meter:
N/A
altitude buble:
no
type of optical plummet:
none
compass:
none

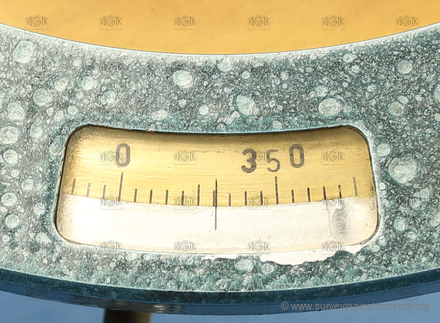

horizontal circle:
yes
horizontal circle diameter:
200
mm
main reading scale of the horizontal circle:
index
the smallest segment of the horizontal circle:
1˚
number of reading scales of the horizontal circle:
1
setting the horizontal circle to zero:
none
vertical circle:
no
segment of the vertical circle:
no
cross level:
no
striding level:
no
designed for work:
special work
