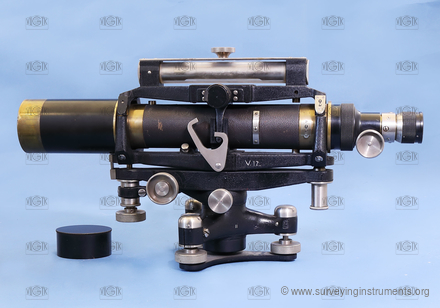

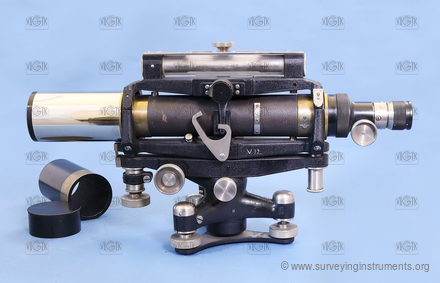

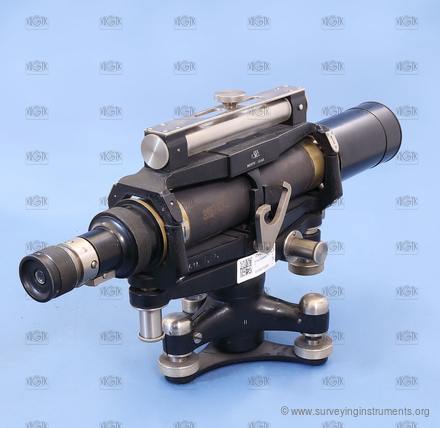

levelling instrument – Societe des Lunetiers
Description

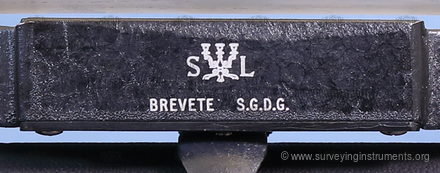

The manufacturer's name on the device
SL
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0242
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Societe des Lunetiers
Made:
01.01.1925
Length:
365
mm
Width:
143
mm
Height:
221
mm
Weight:
4230
g
S/N:
V.12.
Technical parameters
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
415
mm
telescope length with extended eyepiece:
453
mm
telescope diameter:
50
mm
minimum telescope focusing distance:
4100
mm
telescope magnification:
25
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
no
striding level:
yes
bubble length of the striding level:
175
mm
bubble length of the striding level:
34
mm
