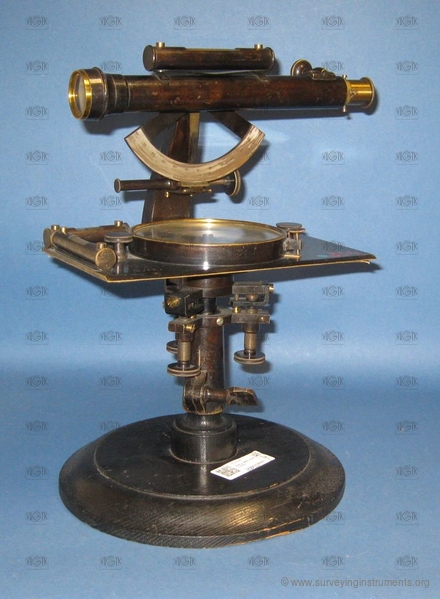

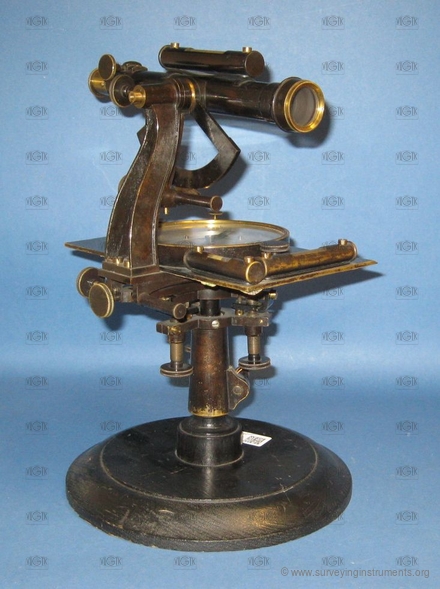

theodolite – GEBR. FROMME WIEN
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0269
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
GEBR. FROMME WIEN
Made:
01.01.1880
Length:
202
mm
Width:
155
mm
Height:
229
mm
Weight:
2330
g
S/N:
542
Technical parameters
telescope type:
flip over
tripod connection:
pin
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
232
mm
telescope length with extended eyepiece:
251
mm
telescope diameter:
24
mm
type of optical plummet:
none
compass:
separate
compass design:
circle
compass diameter:
103
mm
smallest division of the compass scale:
1°
setting the horizontal circle to zero:
none
segment of the vertical circle:
yes
segment's range of vertical circle:
70° - 0° - 70°
vertical circle diameter:
76
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1° / 1'
cross level:
no
length of the cross level/level perpendicular with line of collimation:
30
mm
bubble length of the cross level/level perpendicular with line of collimation:
15
mm
leveling vial:
yes
length of leveling vial:
40
mm
bubble length of the leveling vial:
20
mm
striding level:
no
altitude buble:
no
designed for work:
basic work
