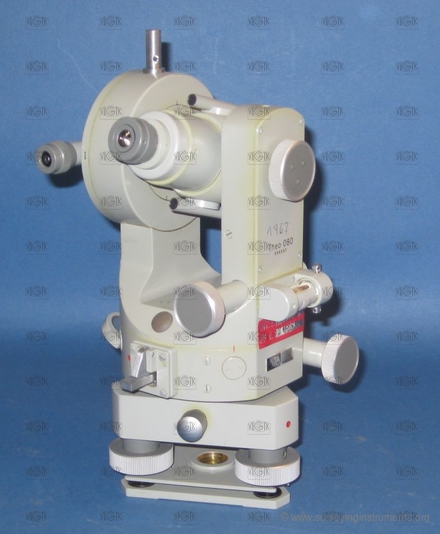

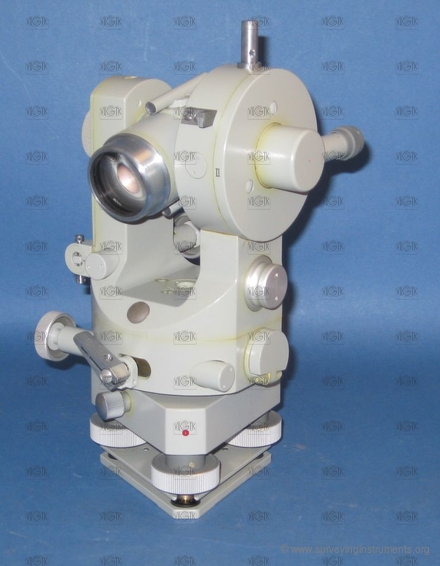

Theo 080
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0282
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1974
Length:
130
mm
Width:
133
mm
Height:
248
mm
Weight:
1581
g
S/N:
389237
Technical parameters
cross hairs:
telescope type:
revolved
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
yes
unite:
gon
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
erected
variable telescope length:
no
telescope length with extended eyepiece:
120
mm
telescope diameter:
33
mm
minimum telescope focusing distance:
2000
mm
type of optical plummet:
none
compass:
none
horizontal circle diameter:
77
mm
main reading scale of the horizontal circle:
reading microscope
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
0,1
setting the horizontal circle to zero:
repeating
vertical circle:
yes
vertical circle diameter:
77
mm
main reading scale of the vertical circle:
reading microscope
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
0,1
cross level:
no
length of the cross level/level parallel with line of collimation:
17
mm
bubble length of the cross level/level parallel with line of collimation:
8
mm
leveling vial:
no
striding level:
no
altitude buble:
no
designed for work:
special work
