Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

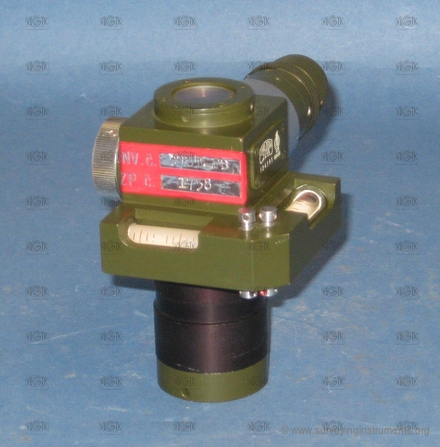

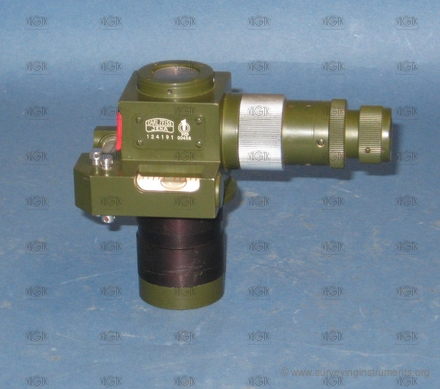

centrovač
The manufacturer's name on the device
- VÚGTK: S0310
- Owner: České vysoké učení technické v Praze - Stavební fakulta
- Manufacturer: Carl Zeiss Jena
- Made: 01.01.1950
- Length: 120 mm
- Width: 66 mm
- Height: 91 mm
- Weight: 244 g
- S/N: 1241591
- telescope type: special
- tripod connection: tribrach
- type of clamp: peripheral clamp
- compensator: no
- view in the telescope: inverted
- variable telescope length: no
- telescope length with extended eyepiece: 180 mm
- telescope diameter: 16 mm
- cross level: yes
- length of the cross level/level parallel with line of collimation: 22 mm
- bubble length of the cross level/level parallel with line of collimation: 11 mm
- length of the cross level/level perpendicular with line of collimation: 22 mm
- bubble length of the cross level/level perpendicular with line of collimation: 11 mm
- sensitivity of the alidade level: 30 "
- designed for work: basic work
