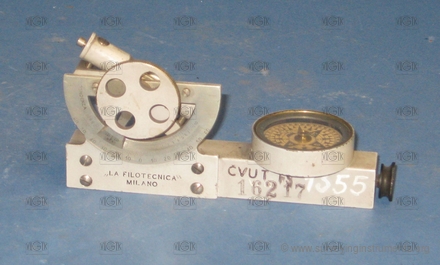

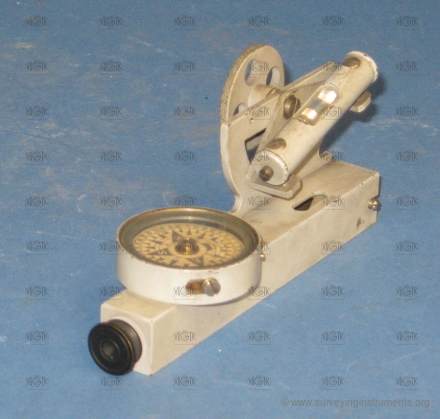

sklonoměr optický
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0324
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Filotecnica Salmoiraghi
Made:
01.01.1960
Length:
122
mm
Width:
46
mm
Height:
57
mm
Weight:
164
g
S/N:
Technical parameters
cross hairs:
telescope type:
rotated
tripod connection:
N/A
type of clamp:
none
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
altitude buble:
yes
view in the telescope:
erected
variable telescope length:
no
telescope length with extended eyepiece:
120
mm
telescope diameter:
13
mm
minimum telescope focusing distance:
0
mm
telescope magnification:
1
type of optical plummet:
none
compass:
integrated
compass design:
circle
compass diameter:
29
mm
smallest division of the compass scale:
2°
horizontal circle:
no
vertical circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
50° – 0° – 60°, resp. ±60%
vertical circle diameter:
29
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1° / 30´resp. 1% / 0,5 %
cross level:
no
length of the cross level/level parallel with line of collimation:
35
mm
bubble length of the cross level/level parallel with line of collimation:
4
mm
striding level:
no
designed for work:
low precise work
