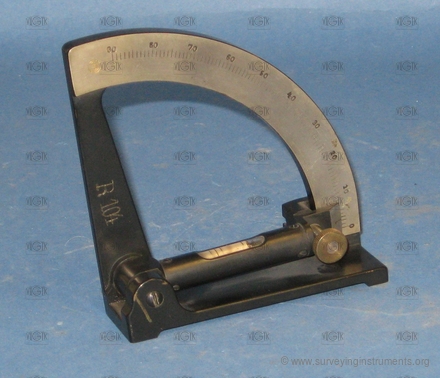

sklonoměr příložný
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0328
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Srb a Štys
Made:
01.01.1921
Length:
96
mm
Width:
26
mm
Height:
100
mm
Weight:
294
g
S/N:
Technical parameters
telescope type:
N/A
tripod connection:
N/A
type of clamp:
none
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
altitude buble:
yes
horizontal circle:
no
segment of the vertical circle:
yes
segment's range of vertical circle:
0° – 90°
vertical circle diameter:
84
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1° / 30´
length of the cross level/level parallel with line of collimation:
40
mm
bubble length of the cross level/level parallel with line of collimation:
8
mm
striding level:
no
designed for work:
special work
