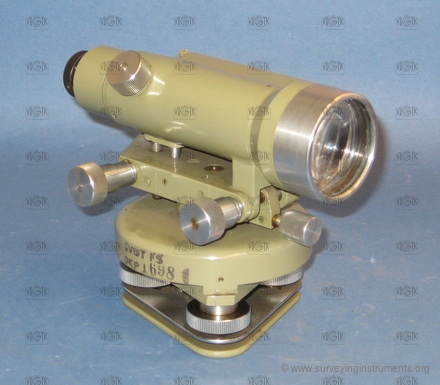

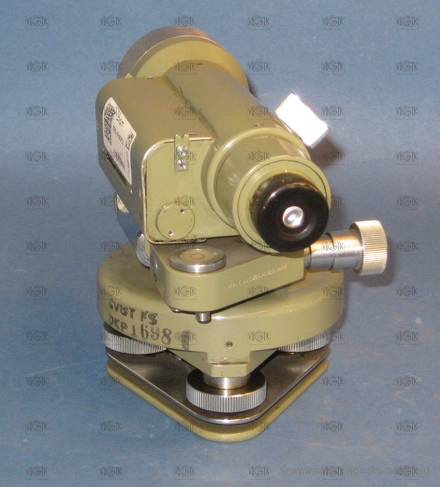

MN 25x
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0331
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Meopta
Made:
01.01.1950
Length:
269
mm
Width:
100
mm
Height:
130
mm
Weight:
1489
g
S/N:
3041379
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with extended eyepiece:
212
mm
telescope diameter:
45
mm
minimum telescope focusing distance:
1450
mm
telescope magnification:
25
telescope magnification:
25
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
40
mm
striding level:
no
designed for work:
basic work
