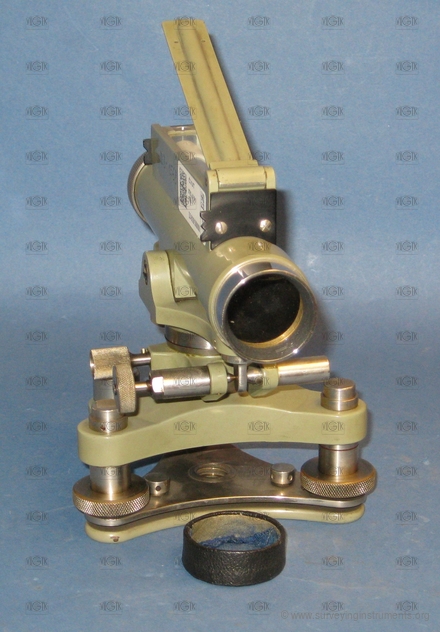

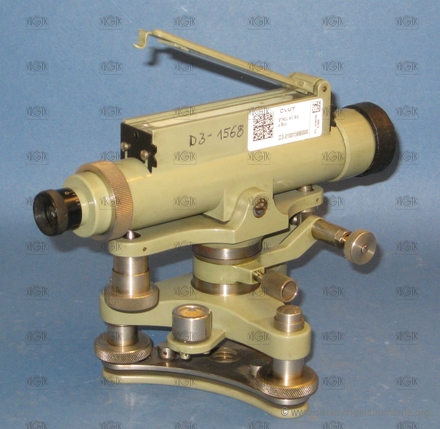

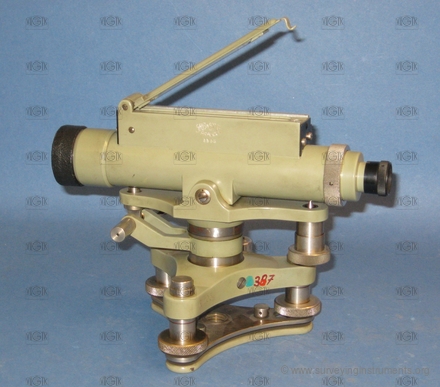

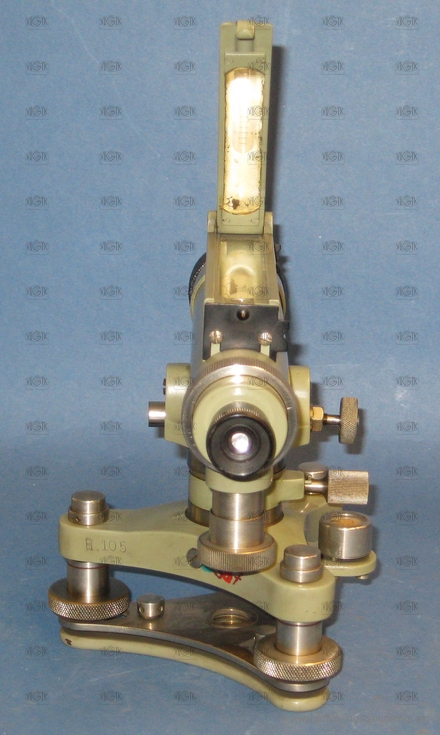

levelling instrument – Srb a Štys
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0335
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Srb a Štys
Made:
01.01.1930
Length:
206
mm
Width:
125
mm
Height:
151
mm
Weight:
1540
g
S/N:
3565
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with extended eyepiece:
206
mm
telescope diameter:
28
mm
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
80
mm
bubble length of the leveling vial:
20
mm
striding level:
no
designed for work:
basic work
