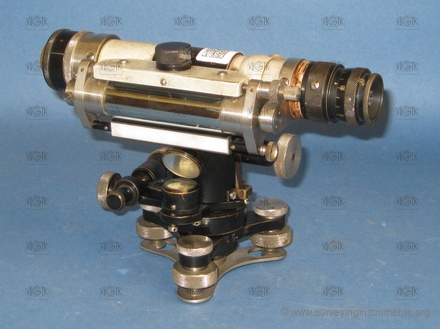

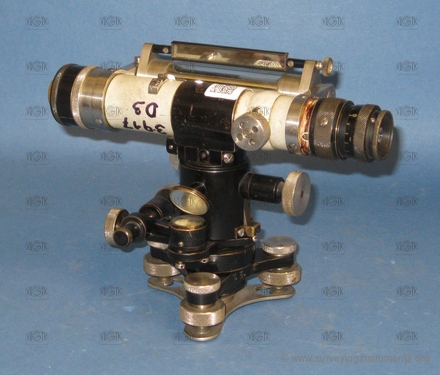

levelling instrument – Carl Zeiss Jena
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0336
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1925
Length:
195
mm
Width:
194
mm
Height:
138
mm
Weight:
1614
g
S/N:
Technical parameters
cross hairs:
telescope type:
rotated
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
distance meter type:
optical
construction of the distance meter:
N/A
view in the telescope:
inverted
variable telescope length:
no
telescope length with extended eyepiece:
195
mm
telescope diameter:
25
mm
minimum telescope focusing distance:
2000
mm
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
80
mm
bubble length of the leveling vial:
20
mm
striding level:
no
designed for work:
basic work
